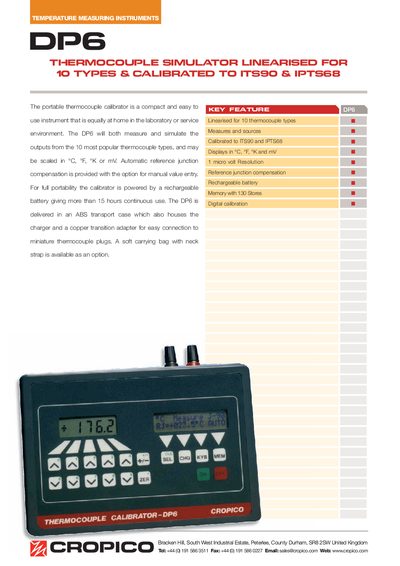

The DP6 portable thermocouple calibrator is a compact and easy to use instrument that is equally at home in the laboratory or service environment. The DP6 will both measure and simulate the outputs from the 10 most popular thermocouple types, and may be scaled in °C, °F, °K or mV. Automatic reference junction compensation is provided with the option for manual value entry. For full portability the calibrator is powered by a rechargeable battery giving more than 15 hours continuous use. The DP6 is delivered in an ABS transport case which also houses the charger and a copper transition adapter for easy connection to miniature thermocouple plugs. A soft carrying bag with neck strap is available as an option.
The DP6 is a compact, portable thermocouple calibrator designed for laboratory and field service use. It can measure and simulate ten common thermocouple types, offers automatic reference junction compensation, and displays values in °C, °F, °K, or mV with 0.1 resolution.
The device includes a rechargeable 6 V 1.2 Ah sealed‑lead‑acid battery providing over 15 hours of continuous operation, a high‑contrast 4.5‑digit LCD, and optional accessories such as a soft carrying bag. Detailed specifications cover temperature ranges, accuracies, dimensions, and environmental limits.
| Resolution | 0.1 °C / 0.1 K / 0.1 °F |
|---|---|
| Display | 4.5‑digit high‑contrast LCD, 10.2 mm |
| Dimensions | 150 mm × 130 mm × 60 mm |
| Mass | 1.4 kg |
| Battery | 6 V 1.2 Ah sealed lead‑acid, replaceable |
| Battery life (continuous use) | More than 15 hours |
The DP6 can operate for more than 15 hours of continuous use on its rechargeable battery.
The DP6 provides a resolution of 0.1 °C, 0.1 K, or 0.1 °F on all thermocouple types.
The DP6 measures approximately 150 mm × 130 mm × 60 mm (W × H × D).
