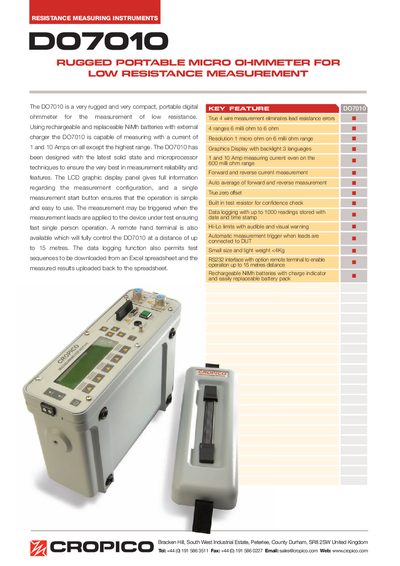

The DO7010 is a very rugged and very compact, portable digital ohmmeter for the measurement of low resistance. It features true 4 wire measurement to eliminate lead resistance errors, 4 ranges from 6 milli ohm to 6 ohm, and a resolution of 1 micro ohm on the 6 milli ohm range. The instrument has a graphics display with backlight, supports 3 languages, and allows for forward and reverse current measurement. It also has an auto average function for forward and reverse measurement, true zero offset, and a built-in test resistor for confidence check. Other features include hi-lo limits with audible and visual warning, small size and light weight (<4Kg), 1 and 10 Amp measuring current even on the 600 milli ohm range, data logging with up to 1000 readings stored with date and time stamp, automatic measurement trigger when leads are connected to DUT, RS232 interface with option remote terminal for operation up to 15 meters distance, and rechargeable NiMh batteries with charge indicator and easily replaceable battery pack.
The DO7010 is a rugged, compact portable digital micro‑ohmmeter designed for low‑resistance measurement. It offers 4 measurement ranges from 6 mΩ to 6 Ω, true 4‑wire Kelvin connections, and a 240 × 64 dot LCD with backlight. The instrument can measure with 1 A or 10 A currents even on the lowest range and provides forward/reverse current measurement with auto‑averaging and zero‑offset correction.
Data logging stores up to 1000 readings with date‑time stamps, and a remote terminal can control the unit up to 15 m via RS232. The device runs on rechargeable NiMH batteries with an external charger, weighs less than 4 kg, and complies with EN 61010‑1 safety standards.
| Measurement ranges | 4 ranges with auto range mode |
|---|---|
| Resolution | 1 µΩ on 6 mΩ range |
| Display | 240 × 64 dot graphics LCD with backlight |
| Measuring current | 1 A and 10 A selectable |
| True 4‑wire measurement | Eliminates lead resistance errors |
| Data logging capacity | Up to 1000 readings stored with date‑time stamp |
| Remote control distance | Up to 15 m via RS232 |
| Battery type | Rechargeable NiMH batteries, external charger |
| Dimensions | 390 mm × 160 mm × 270 mm (W H D) approx |
| Mass | 4 kg approx |
| Working temperature | 0 °C to +50 °C, non‑condensing humidity up to 80 % |
| Storage temperature | -20 °C to +50 °C |
It can store up to 1000 readings with date and time stamps.
The resolution is 1 µΩ on the 6 mΩ range.
The remote terminal can control the instrument up to 15 metres away.
It uses rechargeable NiMH batteries with an external charger.
