This LED strip system features self-adhesive, ultra high output and more, ideal for many applications including display, decorative, sign, under-shelf, and emergency lighting. Flexible strips can be applied to curved edges such as pillars and tubes. Frequent cut points are allowed anywhere along the length of the strip, power is then provided at the adjacent connection point. Different colors can be combined, with solder points every 50mm. 60 LEDs per 1m length with 15mm separation between each LED. Product has IP54 rating. LED Strip Kits comprise of 2m length of LED Strip lighting and a 10W 12V LED driver. If exceeding 4m length of LED strip or if exceeding the power supplied by the original driver, additional LED drivers will be required.
Ulira Bright LED Strip Systems are self‑adhesive, high‑output LED strips designed for display, decorative, sign, under‑shelf, and emergency lighting. The flexible strips can be applied to curved surfaces such as pillars and tubes, and can be cut at any point with power supplied at the adjacent connection.

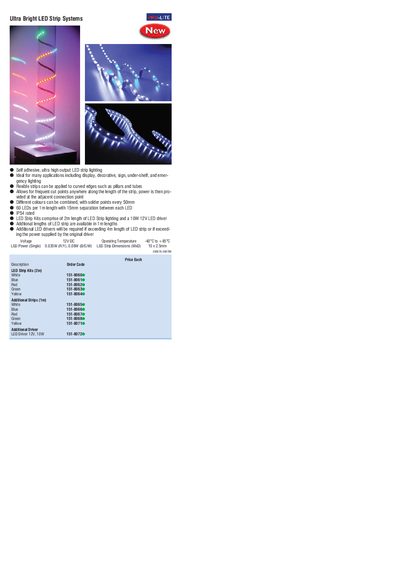

The leaflet lists technical specifications, order codes, and pricing for 2 m kits, additional 1 m strips, and extra 12 V 10 W drivers. It also notes the need for extra drivers when the total strip length exceeds 4 m or the original driver’s capacity.
| LED count per meter | 60 LEDs |
|---|---|
| LED spacing | 15 mm |
| Operating voltage | 42 V DC |
| Operating temperature range | -40 °C to +85 °C |
| LED power (single) | 0.035 W (R/Y), 0.08 W (B/G/W) |
| Strip dimensions (W × D) | 10 mm × 2.6 mm |
| IP rating | IPS4 |
| Driver rating | 12 V, 10 W |
The strips operate at 42 V DC.
They can be used from –40 °C up to +85 °C.
Each meter contains 60 LEDs spaced 15 mm apart.
