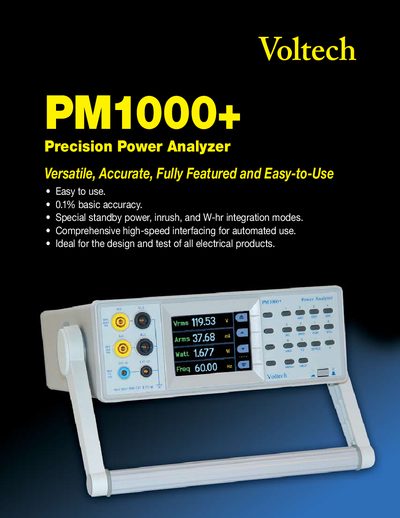

The Voltech PM1000+ Precision Power Analyzer is an easy-to-use product with 0.1% basic accuracy. It features special standby power, inrush, and W-hr integration modes, as well as comprehensive high-speed interfacing for automated use. It is ideal for the design and test of all electrical products.
The PM1000+ is a bench‑style power analyzer designed for accurate measurement of power consumption from milliwatts to megawatts. It offers direct‑connection inputs, high‑speed sampling, DFT‑based harmonic analysis, and built‑in low‑power standby modes for energy‑efficiency testing.
It supports voltage inputs from 0 V to 600 V RMS (±1500 V peak) and current inputs from 0 A to 20 A RMS (±100 A peak), with power ranges up to 90 kW. Features include crest‑factor handling up to 20, THD measurement up to the 50th harmonic, and a standby‑power time window of 1‑300 s.
| Voltage Crest Factor Range | 1.00 to 20.0 |
|---|---|
| Current Crest Factor Range | 1.00 to 20.0 |
| Peak Inrush Current Range | 100 A pk |
| Frequency Range | 10 Hz to 450 kHz |
| Basic Accuracy | 0.1 % reading + 0.1 % of range |
| THD Range | 0‑999 % |
| THD Accuracy | 0.4 % + 0.1 %/kHz |
| Standby Power Time Window | 1‑300 s |
| Impedance Range | 0.005 Ω to 1 MΩ |
| Resistance Range | 0.005 Ω to 1 MΩ |
| Voltage Direct Input Range | 0 V to 600 V RMS (±1500 V peak) |
| Current Direct Input Range | 0 A to 20 A RMS (±100 A peak) |
| Power (Watts) Range | 0 kW to 90 kW |
| Apparent Power Range | 0 kVA to 90 kVA |
| Reactive Power Range | 0 kVAR to 90 kVAR |
The basic accuracy is 0.1 % of the reading plus 0.1 % of the measurement range.
It can measure voltage from 0 V to 600 V RMS (±1500 V peak) and current from 0 A to 20 A RMS (±100 A peak) directly.
