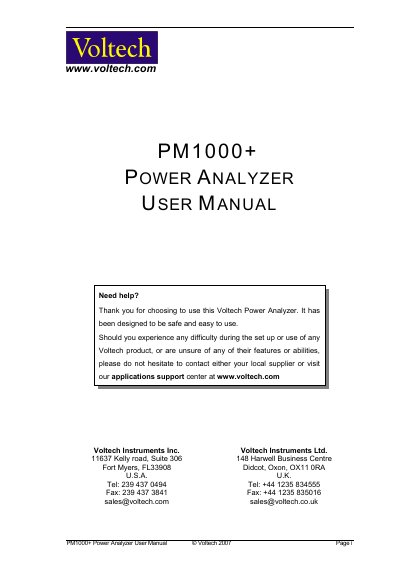

Voltech PM1000+ Power Analyzer User Manual
The Voltech PM1000+ is a bench‑top power analyzer designed for accurate measurement of electrical power, energy, and related parameters. The manual covers safety instructions, package contents, quick‑start procedures, menu navigation, and detailed setup of voltage and current transducers.
It also describes remote operation commands, communication interfaces (RS232, GPIB, USB), measurement accuracy, warranty information, and compliance with safety standards such as EN61010‑1. Users are guided on proper grounding, handling, and servicing by qualified personnel.
Voltech PM1000 specifications
| Measurement range | milli‑watts to mega‑watts |
|---|---|
| Current measurement range | <1 mA to 3000 A |
| Safety compliance | EN61010‑1, Pollution Degree 2, Installation Category II |
| Measured parameters | Watts, Volts, Amps, VA, Power Factor, Harmonics, Standby power, Inrush current |
All Voltech PM1000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions are required when installing the PM1000+?
The analyzer must be earthed, installed only by qualified personnel, and used in accordance with EN61010‑1 safety requirements.
What measurements can the PM1000+ perform?
It measures Watts, Volts, Amps, Volt‑Amperes, Power Factor, harmonic content, standby power, and inrush current.
What is the basic accuracy of the Voltech PM1000+?
The basic accuracy is 0.1 % of the reading plus 0.1 % of the measurement range.
What voltage and current ranges can the PM1000+ measure directly?
It can measure voltage from 0 V to 600 V RMS (±1500 V peak) and current from 0 A to 20 A RMS (±100 A peak) directly.
