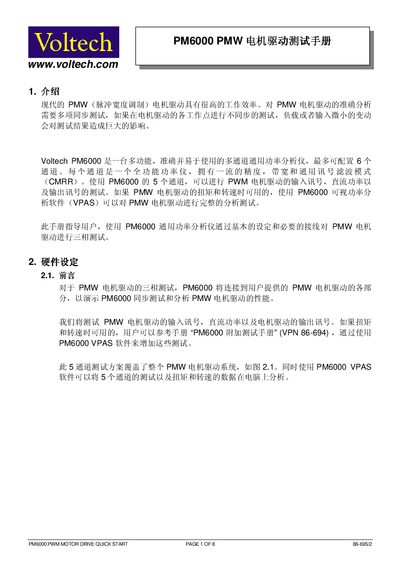

The Voltech PM6000 Quick Start Guide explains how to set up, wire, configure, and test the PWM motor drive using the instrument.
This guide introduces the Voltech PM6000 PWM motor drive and describes the hardware setup, required equipment, and wiring connections for three‑phase and DC‑bus testing.
It also details instrument configuration, channel grouping, PWM mode selection, and how to run and view test results, including default measurement items and custom calculations.
| Number of channels | 6 |
|---|---|
| Input filter bandwidth | 2 MHz |
| Low‑speed frequency range | 0.1 Hz to 0.5 Hz |
| Current connection limit | 30 Arms |
| Default measurement items | Voltage (Vrms), Current (Arms), Power (Watts), VA, Frequency, Power Factor |
It can be configured with up to 6 channels.
Connect it directly to the PM6000 using the 30 Arms shunt.
