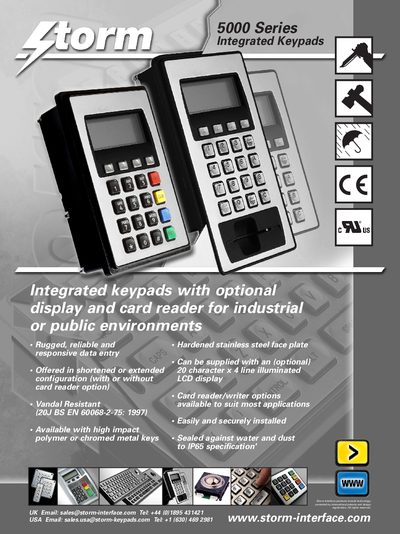

This document introduces an integrated keypad with optional display and card reader, suitable for industrial or public environments. It features rugged, reliable, and responsive data entry, and is offered in shortened or extended configuration with or without a card reader option. The keypad is vandal resistant with a 20J impact rating. It is available with high impact polymer or chromed metal keys. The product, 5000 Series Integrated Keypads, includes a hardened stainless steel faceplate, optional 20 character x 4 line illuminated LCD display, and card reader/writer options for various applications.
The Storm Interface 5000 Series Integrated Keypad is a rugged, vandal‑resistant device designed for industrial and public environments. It can be supplied with an optional illuminated 20 × 4 character LCD display and a hybrid card reader‑writer, and is available with stainless‑steel or high‑impact polymer keys sealed to IP65.
The manual provides engineering details on options, performance ratings, display and card‑reader integration, mounting dimensions, and part numbers, helping installers configure the keypad for vending machines, ATMs, public telephones, ticketing systems, and other harsh‑environment applications.
| Breakdown Voltage | 500 V AC (max 60 secs) |
|---|---|
| Operational Life | 4 million cycles per key (min) |
| Keytop Travel | 1.4 mm nominal |
| Key Actuation Force | 160 gms nominal |
| Connector | 0.1" pitch, gold‑plated square pin, male |
| Environmental Rating | IP65 (when mounted to suitable enclosure) |
| Operational Temperature | -20 °C to +60 °C (dry) |
The keypad is water and dust sealed to IP65 when mounted to a suitable enclosure.
An optional 20 character × 4 line illuminated LCD display is available, with graphic or vacuum‑fluorescent versions.
It can operate from –20 °C to +60 °C in dry conditions.
