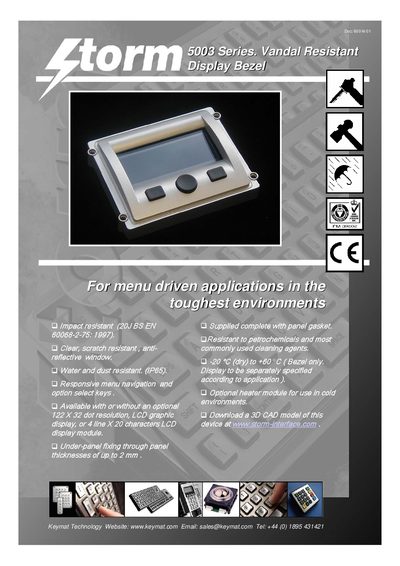

Keymat Technology 5003 series Vandal Resistant display is a vandal-resistant display that features chemical resistance, dust resistance, and water resistance. It can be used in harsh environments. The display comes with a panel gasket and can be equipped with an optional 122 x 32 dot resolution LCD graphic display or a 4 line x 20 characters LCD display module.
The Storm Interface 5003 series display bezel is a vandal‑resistant, IP65‑rated front panel for LCD modules. It operates from –20 °C to +60 °C, is scratch‑resistant, and can be ordered with optional back‑light and heater modules.
The guide provides mechanical dimensions, pin assignments, electrical characteristics, and step‑by‑step mounting instructions, including gasket installation, stud alignment, and securing with M3 Nylock nuts. Ordering numbers and contact details for Storm Interface USA and UK offices are also listed.
| Overall Size | 98.0 x 60.0 mm |
|---|---|
| View Area | 76.0 x 25.2 mm |
| Dot Size | 0.55 x 0.55 mm |
| Dot Pitch | 0.60 x 0.60 mm |
| Operating Temperature | -20 °C to +60 °C |
| IP Rating | IP65 |
| LCD Resolution | 122 x 32 dots |
| Backlight Options | LED, EL |
| LED Backlight Voltage | 4.2 V |
It is water and dust resistant with an IP65 rating.
The bezel can be used from –20 °C (dry) up to +60 °C.
Fit the supplied gasket over the four weld studs on the rear of the host panel, slide the bezel over the studs and secure it with M3 Nylock nuts or equivalent.
The view area measures 76 mm by 25 mm.
