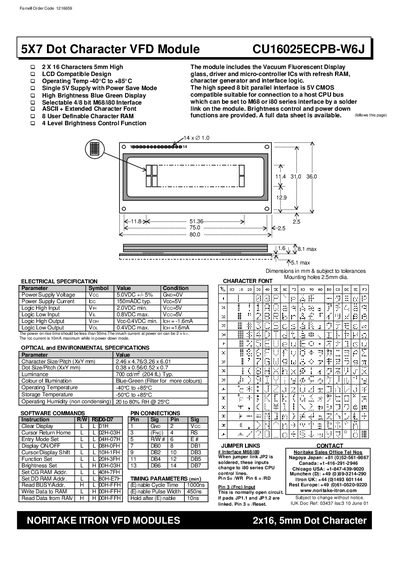

This document is the user manual of NORITAKE ITRON VFD MODULES 2x16, 5mm Dot Character CHARACTER FONT 5X7 Dot Character VFD Module CU16025ECPB-W6J, it has 2 X 16 Characters 5mm High, LCD Compatible Design, Operating Temp -40°C to +85°C, Single 5V Supply with Power Save Mode, High Brightness Blue Green Display, Selectable 4/8 bit M68/i80 Interface, ASCII + Extended Character Font, 8 User Definable Character RAM, 4 Level Brightness Control Function etc.
The CU16025ECPB-W6J is a 5×7 dot character vacuum fluorescent display (VFD) module offering 32 characters (2 × 16) with blue‑green illumination. It is designed for direct connection to a host CPU bus using a single 5 V supply and supports both 4‑bit and 8‑bit parallel interfaces.
The handbook details electrical and optical specifications, command tables for display control, and safety precautions such as anti‑static handling and limits on mechanical shock. It also includes wiring diagrams, timing parameters, and recommended operating conditions to ensure reliable performance.
| Character size | 2.46 × 4.76 mm |
|---|---|
| Dot size | 0.38 × 0.56 mm |
| Luminance | 700 cd/m² (typ.) |
| Operating temperature | -40 °C to +85 °C |
| Power supply voltage | 5.0 VDC ±5 % |
| Power supply current (typical) | 150 mA |
| Logic high input voltage | ≥ 2.0 VDC |
The module operates from –40 °C to +85 °C.
It requires a 5.0 VDC supply with a tolerance of ±5 %.
Use the Display ON/OFF command: setting D=1 turns the display on, D=0 turns it off.
