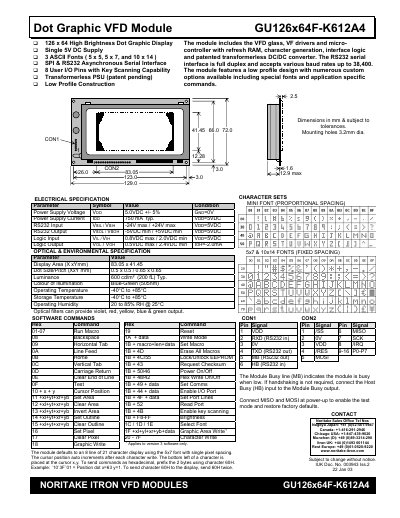

NORITAKE ITRON VFD MODULES GU126x64F-K612A4 is a high brightness dot graphic VFD module produced by NORITAKE ITRON, which has a single 5V DC supply, 3 ASCII fonts, SPI and RS232 asynchronous serial interface, 8 user I/O pins and other features.
This manual describes the electrical and optical specifications of the Noritake GU126x64F-K612A4 dot‑matrix VFD module, including power supply requirements, voltage levels for RS232 and logic I/O, display dimensions, luminance, and environmental limits. It also lists the available fonts, I/O pins, and key‑scanning capabilities.
The document contains a complete command set for both asynchronous (RS232/TTL) and synchronous serial interfaces, instructions for displaying text and graphics, area‑fill and outline commands, checksum handling, and macro programming for custom screens and power‑up messages.
| Power Supply Voltage | 5.0 VDC ±5% |
|---|---|
| Power Supply Current | 750 mA typ. |
| Display Area | 83.05 x 41.45 mm |
| Luminance | 600 cd/m² (200 fL) typ. |
| Operating Temperature | -40 °C to +85 °C |
| Default UART Settings | 19200 baud, no parity |
| User I/O Pins | 8 pins with key‑scanning |
The factory default UART settings are 19200 baud with no parity.
The module provides eight user I/O pins that support key‑scanning.
The display has a typical luminance of 600 cd/m² (200 fL).
Yes, up to eight macros can be stored in non‑volatile EEPROM and one macro is executed at power‑up.
