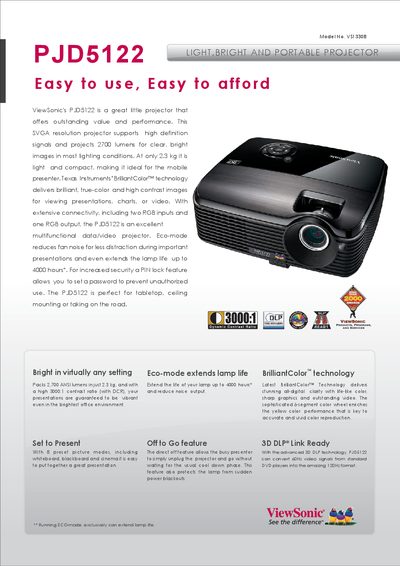

PJD5122 is a portable projector from ViewSonic that weighs only 2.3kg and features 2,700 ANSI lumens and a 3000:1 contrast ratio, ensuring vibrant presentations in even the brightest office environments. It also has 8 preset picture modes, including whiteboard, blackboard, and cinema, making it easy to put together a great presentation.
The ViewSonic PJD5122 is a lightweight (2.3 kg) SVGA projector offering 2700 lumens brightness, 3000:1 contrast, and a range of picture modes for presentations, video, and whiteboard use. It features Texas Instruments’ BrilliantColor™ technology, Eco‑mode for reduced fan noise and extended lamp life, and a PIN lock for security.
The manual covers installation options (tabletop, ceiling, portable), detailed specifications, control functions, connectivity (RGB, composite, S‑Video, audio, RS‑232), and safety guidelines. Optional accessories such as a 3D Gaggle, replacement lamp, and wireless presentation gateway are also listed.
| Resolution | SVGA 800×600 (Native) |
|---|---|
| Brightness | 2700 Lumens |
| Contrast Ratio | 3000:1 |
| Lamp Power | 220 Watt |
| Lamp Life (Normal/Eco) | 4000 / 6000 hours |
| Throw Distance | 11‑113 m |
| Throw Ratio | 1.86:1‑2.04:1 |
| Weight | 2.3 kg |
| Power Consumption | 280 W (Typical) |
| RGB Input | 2 × 15‑pin D‑sub |
| Audio Output | 1 × 3.5 mm mini jack |
| Keystone Correction | Vertical +40° digital |
| Colour Depth | 24 bits (16.7 M colours) |
| Supported Languages | English, Dutch, French, Spanish, Italian, Korean, Thai, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, German, Swedish, Turkish, Finnish, Polish, Czech |
In Eco mode the lamp can last up to 6000 hours.
The projector provides a maximum brightness of 2700 lumens.
The projector offers two RGB 15‑pin D‑sub inputs, a composite RCA jack, a 4‑pin mini‑DIN S‑Video input, audio in/out 3.5 mm jacks, and an RS‑232 control port.
Activate Eco‑mode, which reduces fan noise and also extends lamp life.
