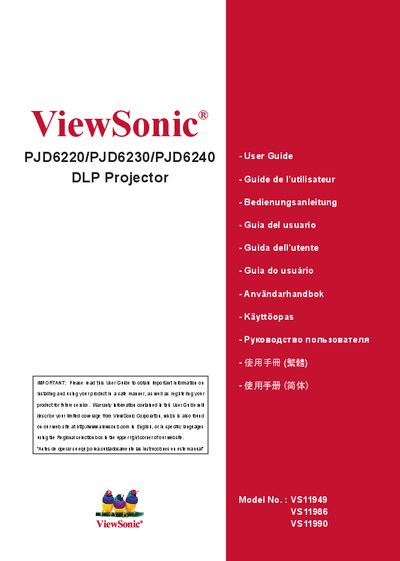

This document is the user manual for ViewSonic PJD6220/PJD6230/PJD6240 DLP projector, which introduces the installation, use and warranty information of the product
This guide introduces the ViewSonic PJD6220, PJD6230 and PJD6240 DLP projectors, covering safety precautions, FCC/CE compliance, and key features such as a single‑chip 0.55" DLP engine, XGA (1024 × 768) resolution, and support for multiple video standards.
It details installation steps, connection ports, control panel and remote operation, network management, routine maintenance like cleaning the lens and replacing the lamp, and troubleshooting advice to keep the projector performing reliably.
| Display Engine | Single chip 0.55" Texas Instruments DLP® technology |
|---|---|
| Native Resolution | XGA (1024 x 768 pixels) |
| Auto‑Sync Scaling | 1024 x 768 full screen with scaling |
| Computer Compatibility | Macintosh® computers, NTSC, PAL, SECAM, HDTV |
| Video Connector | D‑Sub 15‑pin terminal for analog video |
| Model Number | VS11949/VS11986/VS11990 |
Do not use the unit near water, keep ventilation openings clear, use the supplied grounding plug, and unplug the projector when not in use.
Clean the lens with a soft, dry cloth; if residue remains, follow the “Cleaning the Display” instructions in the guide.
It uses a D‑Sub 15‑pin terminal for analog video connectivity.
The projector’s native resolution is XGA, 1024 × 768 pixels.
