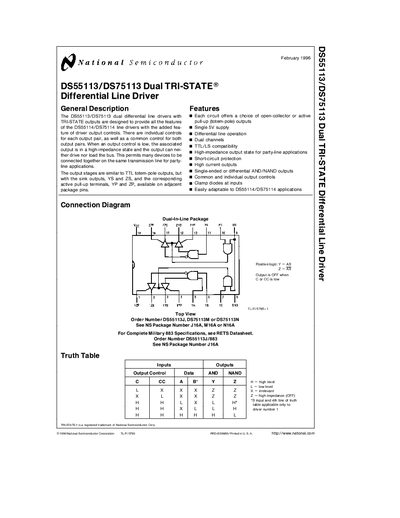

The DS55113–DS75113 dual differential line drivers with TRI-STATE outputs are designed to provide all the features of the DS55114–DS75114 line drivers with the added feature of driver output controls.
The DS55113/DS75113 dual TRI-STATE differential line driver offers dual channels with individual or common output controls, open‑collector or active pull‑up options, and high‑impedance states for party‑line applications. It operates from a single 5 V supply and is TTL/LS compatible, featuring short‑circuit protection and clamp diodes at the inputs.
The document includes absolute maximum ratings, detailed electrical characteristics such as input thresholds, propagation delays, and supply currents, as well as mechanical dimensions for the J, M, and N package variants. Typical performance curves and switching time waveforms illustrate the device behavior over temperature and load conditions.
| Supply Voltage (VCC) | 5.5 V |
|---|---|
| Operating Temperature Range (DS55113) | -58 °C to +125 °C |
| Package Options | DS55113J, DS75113M, DS75113N |
The device operates from a 5.5 V supply, with typical operation between 4.75 V and 5.25 V.
The DS55113 is rated from –58 °C to +125 °C (free‑air temperature).
The drivers are offered in three packages: DS55113J (J‑package), DS75113M (M‑package), and DS75113N (N‑package).
