This product is a DVI-D signal extender that can transmit signals between AV sources and display devices via Cat5e/6 cables. The maximum transmission distance is 80m. There are three models: DVI-E101T, DVI-E102T and DVI-E102TR.

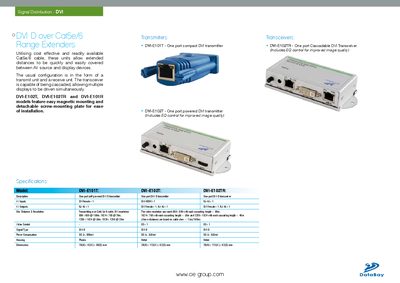

The DVI‑D over Cat5e/6 extenders from CIE Group use inexpensive Cat5e/6 cable to transmit video signals from an AV source to a display. The usual setup consists of a transmit unit and a receive unit, and the transceiver can be cascaded to drive multiple displays simultaneously.
Several models are offered, including compact one‑port transmitters (DVI‑E101T, DVI‑E102T), a cascable transceiver (DVI‑E102TR), and long‑range receivers (DVI‑E101R, DVS‑DR) as well as an audio‑only receiver (DVS‑AR). Each model includes magnetic mounting and detachable screw‑mounting plates for easy installation.
| Model | DVI‑E101T – One‑port compact DVI transmitter |
|---|---|
| AV Inputs | DVI female x1 |
| AV Outputs | DVI Female x1 |
| Power Consumption | DC 800 mA |
| Housing | Plastic |
| Dimensions | 19 mm (H) × 42 mm (W) × 68 mm (D) |
The DVI‑E101R long‑range receiver can operate up to 100 m over Cat5e/6 cable.
The DVS‑AR uses RJ‑11 cable to extend stereo audio up to 80 m.
