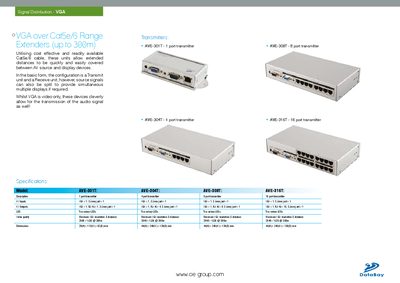

VGA over Cat5e/6 Range Extenders (up to 300m) utilises cost effective and readily available Cat5e/6 cable, allowing extended distances to be quickly and easily covered between AV source and display devices.
The CIE Group VGA over Cat5e/6 range extenders use inexpensive Cat5e/6 cable to extend VGA video (and audio) signals up to 300 m. The basic system consists of a transmitter unit and a receiver unit, with optional split‑screen configurations for multiple displays.
The product line includes several transmitter models (AVE‑301T, AVE‑304T, AVE‑308T, AVE‑316T) and corresponding receivers or transceivers (AVE‑301R, AVE‑304TR, AVE‑308TR). Each model’s specifications such as port count, LED indicators, video resolution, and physical dimensions are listed in the handbook.
| Maximum VGA resolution & distance | 2048 x 1536 @ 300 m |
|---|---|
| LED indicator type | Two colour LEDs |
| Dimensions (4‑port transmitter) | 44 mm (H) × 240 mm (W) × 180 mm (D) |
The extenders can transmit VGA video up to 300 m while maintaining a resolution of 2048 × 1536.
The devices use standard Cat5e or Cat6 cable for signal transmission.
Yes, the units also allow transmission of the audio signal alongside video.
The AVE‑308T model is an 8‑port transmitter.
