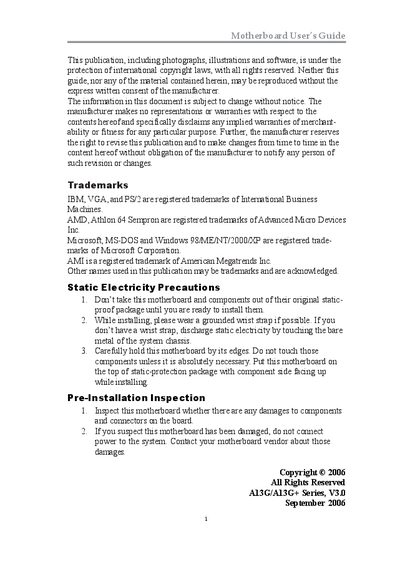

This document is a motherboard user's guide, describing the features, characteristics, and usage of the motherboard.
This guide covers the complete installation process for the PECHIPS A13G/A13G+ motherboard, including static‑electric precautions, component identification, CPU and memory installation, jumper settings, and connecting optional devices. It also details the BIOS setup utility, power‑management options, and on‑board peripheral configuration.
Additional sections describe the bundled software, driver installation under Windows XP/2000/NT, and troubleshooting notes such as USB 2.0 driver limitations and Windows Logo testing warnings. Package contents and optional accessories are listed at the end of the document.
| CPU Socket | Socket AM2 |
|---|---|
| Front‑Side Bus Speed | Up to 1000 MHz |
| Chipset | NVIDIA nForce MCP61 Value/MCP Standard media |
| Memory Slots | Two 240‑pin DDR2 DIMM slots |
| Maximum Memory | 16 GB |
| Serial ATA | Two SATA2 3.0 Gb/s ports |
| USB Ports | Four back‑panel USB 2.0 ports |
| PCI Slots | Two 32‑bit PCI, one PCI‑Express Pro, one PCI‑Express x1 |
| Ethernet | Built‑in 10Base‑T/100Base‑Tx Fast Ethernet |
| Dimensions | Micro‑ATX 244 mm × 214 mm |
It uses a Socket AM2 that supports AMD Athlon 64, Athlon 64 X2, FX and Sempron processors.
The board can install up to 16 GB of DDR2 memory.
It is a Micro‑ATX board measuring 244 mm by 214 mm.
