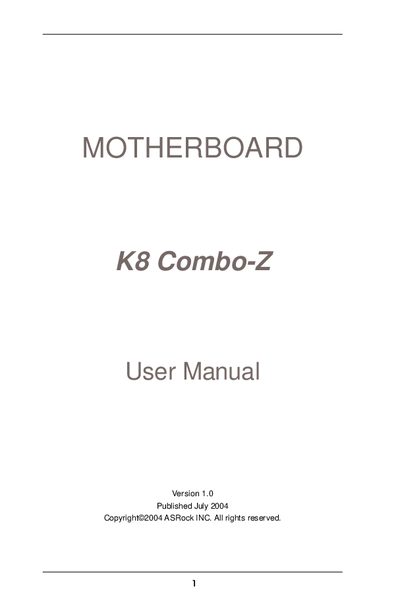

ASRock K8 Combo-Z Motherboard User Manual
This manual introduces the ASRock K8 Combo-Z motherboard, outlines the package contents, and details the hardware layout. It also explains the supported CPUs, memory types, and expansion options.
The document guides users through installation, BIOS setup, and software support, including driver installation from the support CD and enabling AMD’s Cool ’n’ Quiet power‑saving technology. This manual is written in Chinese.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| Memory Slots | 3 DDR DIMM slots (DDR1, DDR2, DDR3) |
| Maximum Memory | 2 GB |
| SATA Connectors | 2 ports, up to 2 devices at 1.5 Gb/s |
| USB 2.0 Ports | 8 ports (4 on I/O panel, 4 via headers) |
| Audio | 7.1‑channel audio |
| LAN | 10/100 Mbps Ethernet |
The board provides eight USB 2.0 ports – four on the I/O panel and four additional ports via two on‑board headers.
