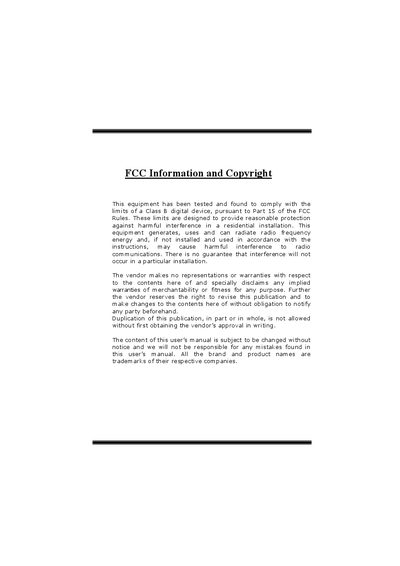

Motherboard Description User Manual

This user manual introduces the features and characteristics of the U8668 Pro mainboard, including hardware, BIOS and software.

Brand: Motherboard
Category: Motherboard
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 662 KB
Published: 06 April, 2012
Updated: 30 September, 2023
MD5 checksum: CA2C0EFCEBB6E99B9C2AAF9081C0875A
PDF: Motherboard Description User Manual PDF

About this manual

This manual provides an overview of the motherboard's hardware features, including CPU socket, chipset, memory support, and integrated peripherals. It also details the layout of connectors, jumpers, and BIOS functions.

The document includes configuration steps for the CPU, memory modules, and various I/O ports, as well as specifications for Ethernet, audio, and graphics capabilities.

What's inside

Mainboard Features
CPU Configuration
Memory (DDR SDRAM) Configuration
Connector Layout
Jumpers and Headers
BIOS & Power Management
Ethernet 10/100 Interface
Audio (AC'97) Codec
Integrated Graphics
Dimensions

Specifications

CPU Socket	Socket‑478
Supported CPU	Intel Pentium 4
Maximum CPU Core Speed	2.4 GHz
Chipset	VIA VT8751 (P4M266) / VT8235
Super I/O Chipset	ITE 8705
Memory Types Supported	200 MHz / 266 MHz DDR SDRAM, PC100, PC133
Maximum Memory Capacity	2 GB
PCI Slots	3 × 32‑bit PCI 2.2, 33 MHz
AGP Slot	1 × AGP 2.0, 66 MHz, 1×/2×/4×
USB Ports	2 rear USB 2.0, 4 front USB 2.0

Frequently asked questions

What CPU socket does the motherboard use?

The motherboard uses a Socket‑478 for the CPU.

What is the maximum memory the board can support?

It can support up to 2 GB of RAM.

Download PDF (662 KB)
