This document describes the features and characteristics of the LG Fully Automatic Washing machine, including wrinkle protection, built-in heater, intelligent wash system, child lock, low noise speed control system, and direct drive system.

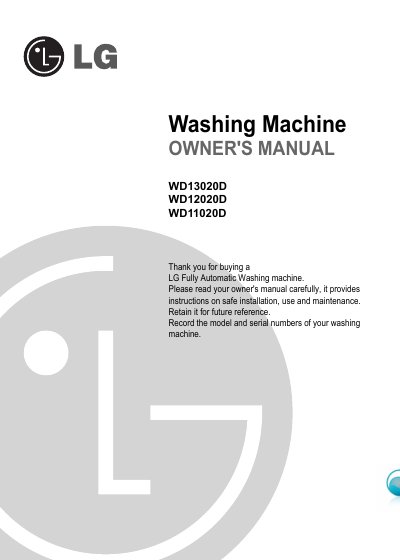

This manual provides complete instructions for safely installing, using, and maintaining LG fully automatic washing machines (models WD13020D, WD12020D, WD11020D). It includes product features, specifications, wiring, water‑connection guidelines, and safety warnings.
The guide also contains step‑by‑step procedures for loading detergent, selecting wash cycles, adjusting level, removing transit bolts, and troubleshooting common issues such as water supply problems or spin‑cycle errors. This manual is written in Chinese.
| Power supply | 220‑240 V~, 50 Hz |
|---|---|
| Dimensions (W × D × H) | 600 mm × 550 mm × 850 mm |
| Weight / Maximum power | 58 kg / 2100 W |
| Permissible water pressure | 1.0‑8 bar (100‑800 kPa) |
| Spin speed (WD13020D) | No Spin / 400 / 800 / 1300 rpm |
Check that the water taps are fully open, straighten any kinked inlet hoses, and clean the inlet hose filters.
Adjust the four feet so the washer is level, use the provided lock nuts, and optionally place rubber cups under each foot.
The drain hose should not be placed higher than 100 cm above the floor and must be securely fastened to prevent leaks.
