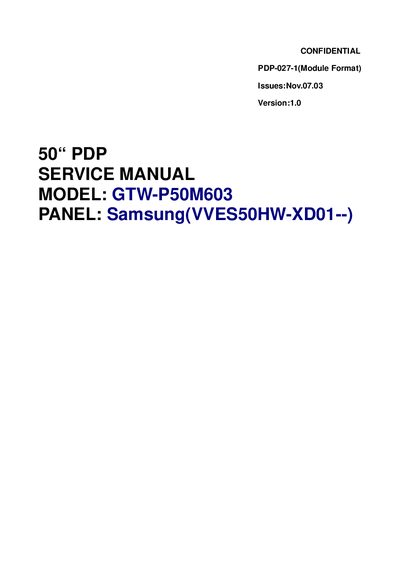

This document is a PDP service manual that covers important safety precautions, specifications, factory and electronic adjustment, troubleshooting guides, electronic module list, and more. The manual is applicable to the GTW-P50M603 model with a Samsung(VVES50HW-XD01--) panel.
This service manual provides detailed safety precautions, electrical specifications, connector information, and adjustment procedures for the Samsung GTW-P50M603 50‑inch plasma display. It includes block diagrams, exploded views, parts lists, and a comprehensive troubleshooting guide for service technicians.
The document also contains wiring diagrams, connector pin assignments for D‑SUB and DVI interfaces, and packaging details, enabling accurate repair, calibration, and replacement of components.
| Screen diagonal | 50 inch |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 1366 x 768 pixels |
| Pixel pitch | 0.81 mm (H) x 0.81 mm (V) |
| Luminance (typical) | 500 cd/m² |
| Contrast ratio (typical) | 450:1 |
| Input voltage | 100 ~ 240 Vac, 50/60 Hz |
| Maximum power consumption | 470 W + 10 % (at 110 Vac) |
| Stand‑by power | 10 W (at 110 Vac) |
| Video signal amplitude (RGB) | 0.7 Vp‑p |
| Audio input level | 500 mV rms / >22 kΩ |
It operates from 100 V to 240 V AC at 50 Hz or 60 Hz.
The panel’s native resolution is 1366 × 768 pixels.
