A2101, A2102, A2103 series optical tachometers, with 5 digit vertical display, 0.01% ±1 digit accuracy, 0.8 second or time between pulses (whichever is slower) timebase, ±45° optical angle to reflective target, Minilamp light source, target indicator and battery low indication in display, power supply = 4 x AAA batteries.

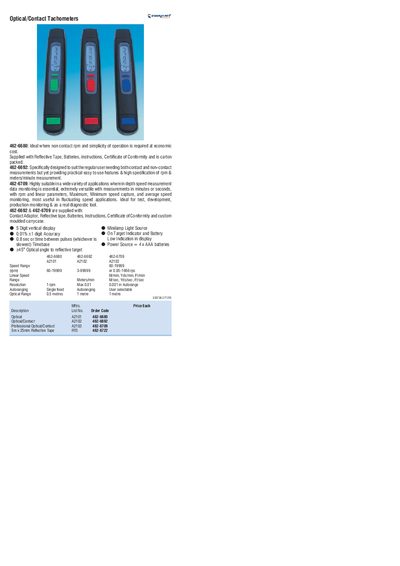

The Compact Instruments optical/contact tachometers provide non‑contact and contact speed measurement options for a variety of applications. Models 462‑6680, 462‑6692 and 462‑6709 offer 5‑digit vertical displays, high accuracy (0.01% + 1 digit) and optional on‑target indicators.
All units are powered by four AAA batteries and include a reflective tape, contact adaptor, instructions, a certificate of conformity and a custom‑moulded carrycase. Optical measurement angles are +45°, with ranges of 0.5 m for the basic model and 4 m for the higher‑spec versions. Speed ranges cover 60–9999 rpm, with linear speed options in meters/min, yards/min, etc.
| Speed Range | 60‑9999 rpm |
|---|---|
| Optical Range | 0.5 metres (A2104) / 4 metres (A2102, A2103) |
| Power Source | 4 × AAA batteries |
| Display | 5‑digit vertical display |
| Accuracy | 0.01 % + 1 digit |
| Optical Angle | +45° to reflective target |
It is powered by four AAA batteries.
The optical angle is +45° to the reflective target.
Each unit comes with a contact adaptor, reflective tape, batteries, instructions, a certificate of conformity and a custom‑moulded carrycase.
