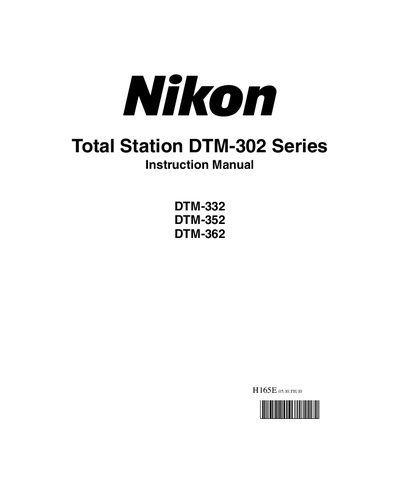

Nikon DTM-332/352/362 Total Station User Manual

This manual explains how to use the DTM-302 series total station

Brand: Nikon
Category: Digital cameras
Document type: User Manual
Language: English
Pages: 230
File format: PDF
File size: 3.1 MB
Published: 02 May, 2012
Updated: 30 September, 2023
MD5 checksum: 968493EE2951ED16C45A8E4D39509E2D
PDF: Nikon DTM-332/352/362 Total Station User Manual PDF

About this manual

This manual covers safety information for the DTM-302 series total stations, including LED safety, warnings, and cautions such as never looking at the sun through the telescope and using only the specified battery charger (part number Q-75U/E). It also describes proper handling of the tripod, battery pack, and charger to prevent injury or equipment damage.

The document details technical specifications like telescope tube length, magnification, EDM range, and angle measurement precision for each model, and includes error messages and troubleshooting steps for common setup and measurement issues.

What's inside

Introduction
Safety
LED Safety
Warnings and Cautions
Specifications
Error Messages

Specifications

Tube length	158 mm (6.22 in.)
Magnification	33×
Objective diameter	45 mm (1.78 in.)
EDM range (single prism)	2,000 m (6,600 ft)
Minimum display increment	360° 1''/5''/10''

Frequently asked questions

What safety warning is given about looking through the telescope?

Never look at the sun through the telescope.

Which battery charger should be used with the DTM-302 series?

Only the specified battery charger part number Q-75U/E should be used.

What is the LED safety class of the DTM-362/352/332?

The instrument is a Class 1 LED instrument.
