GP270AAHC 4-slot charger, 1-4 AA or AAA mix charging, with LCD display

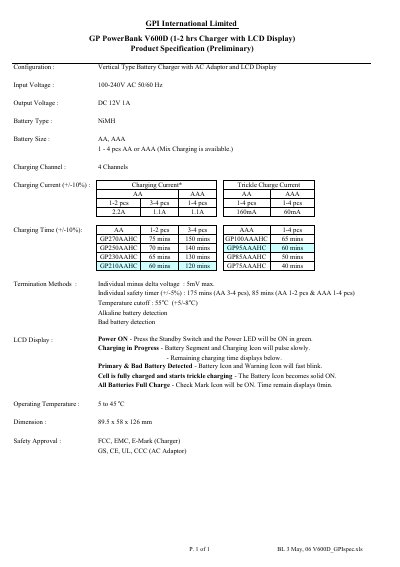

The GP V600D is a vertical‑type battery charger with an AC adaptor and LCD display. It accepts 100‑240 V AC input (50/60 Hz) and provides a 12 V 1 A DC output for charging NiMH AA and AAA cells. The charger supports up to four cells simultaneously across four independent channels, with charging currents ranging from 160 mA for single AAA cells up to 2.2 A for AA cells.
Safety functions include individual delta‑voltage termination (5 mV max), per‑channel timers, a temperature cutoff at 55 °C, and detection of alkaline or bad batteries. The unit operates between 5 °C and 45 °C, measures 89.5 × 58 × 126 mm, and carries FCC, EMC, E‑Mark, GS, CE, UL and CCC approvals for both the charger and its AC adaptor. This manual is written in Chinese.
| Input Voltage | 100‑240 V AC 50/60 Hz |
|---|---|
| Output Voltage | DC 12 V 1 A |
| Supported Battery Types | NiMH AA, AAA (mix charging available) |
| Charging Channels | 4 |
| Termination Method – Delta Voltage | 5 mV max |
| Termination Method – Safety Timer | 175 min (AA 3‑4 pcs), 85 min (AA 1‑2 pcs & AAA 1‑4 pcs) |
| Temperature Cutoff | 55 °C (+5/‑8 °C) |
| Operating Temperature Range | 5 °C – 45 °C |
| Dimensions (W × H × D) | 89.5 × 58 × 126 mm |
| Safety Approvals | FCC, EMC, E‑Mark, GS, CE, UL, CCC |
It can charge NiMH AA and AAA batteries, and mix charging of AA and AAA is supported.
