CAM419 Network Vandal Dome is a CMOS Network Vandal Dome. It builds in web server. User views real-time video via IE browser. CAM419 supports MPEG-4 & M-JPEG video compression which provides smooth and high quality video. The video can be stored in the SD card, and can be playback remotely.
The CAM419 is a 1.3‑megapixel network vandal dome camera with built‑in web server, PoE support, and dual‑stream MPEG‑4/MJPEG video. It records to an SD card and provides two‑way audio, motion detection, and remote firmware upgrades.

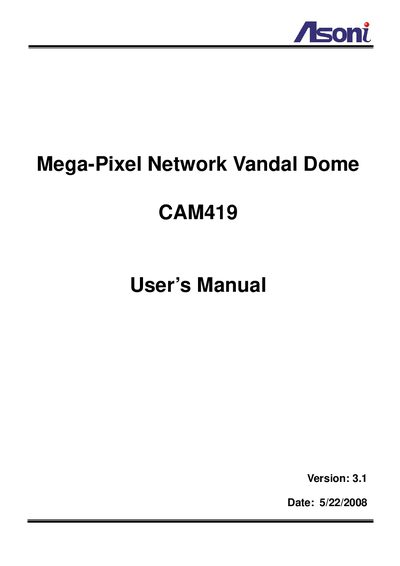

The manual guides users through hardware installation, monitor settings, IP configuration, network setup, and live video viewing, and includes an appendix with compatible SD‑card models.
| CPU | ARM9, 32‑bit RISC |
|---|---|
| RAM | 64 MB |
| ROM | 4 MB |
| Image Sensor | 1/4" CMOS, 1.3 MP |
| Power Consumption | DC 12 V, 700 mA |
| PoE Support | IEEE 802.3af built‑in |
| Network Interface | 10/100 Base‑T Ethernet |
| Video Resolutions | 1280×1024, 640×480, 320×240, 160×120 |
| Compression Formats | MPEG‑4, MJPEG |
| Dual Streaming | Yes (MPEG‑4 / MJPEG) |
| Motion Detection | 3 configurable areas |
| Audio | 2‑way |
| SD Card Support | Local recording, various capacities |
Use the IP Assignment utility (IP Search) to set a Fixed IP, DHCP, or PPPoE address, ensuring the PC is on the same subnet as the camera.
