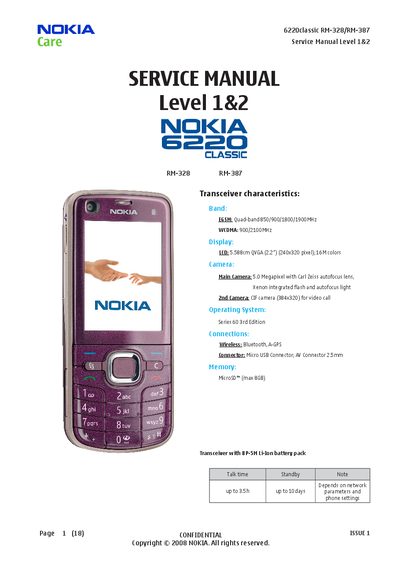

This document is a service manual for Nokia 6220classic RM-328/RM-387, which introduces the features and characteristics of this mobile phone, including battery information, display, camera, operating system, connections, and memory.
This Service Manual Level 1&2 is intended for qualified service technicians to perform maintenance, repair and component replacement on the Nokia 6220classic mobile phone. It includes safety warnings, ESD protection guidelines, battery handling instructions, and detailed exploded views of the device.
The manual provides step‑by‑step disassembly and assembly procedures, torque specifications, part numbers, and guidance on handling sensitive components such as the xenon flash module. It also lists the phone's technical specifications, connectors, and supported network bands.
| Network Bands | EGSM Quad‑band 850/900/1800/1900 MHz; WCDMA 900/2100 MHz |
|---|---|
| Display | 5.588 cm QVGA (2.2”) LCD, 240×320 px, 16 M colors |
| Main Camera | 5.0 MP Carl Zeiss autofocus lens with Xenon flash |
| Secondary Camera | CIF (384×320) for video call |
| Operating System | Series 60 3rd Edition |
| Wireless Connections | Bluetooth, A‑GPS |
| Connectors | Micro USB connector; 2.5 mm AV connector |
| Memory Card Support | MicroSD, up to 8 GB |
| Battery | BP‑5M Li‑Ion battery pack |
The phone provides a Micro USB connector for data and charging, and a 2.5 mm AV connector for audio/video.
