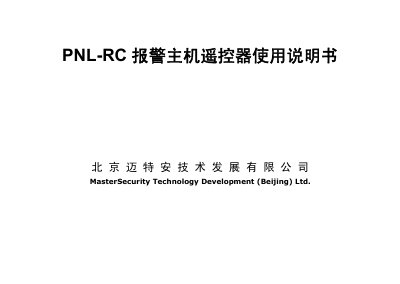

PNL-RC alarm host remote controller user manual introduces PNL-RC alarm host remote controller features, performance, installation, wiring, remote controller operation methods, precautions, standard accessories, warranty and other content.
This manual describes the PNL‑RC alarm remote, which consists of a receiver unit and up to three button controllers. It outlines the main features, performance parameters, and how the device integrates with Honeywell 23 series alarm panels.
Installation instructions cover mounting the receiver, wiring options, power supply details, and pairing procedures. The guide also explains controller operation, safety precautions, standard accessories, and warranty information. This manual is written in Chinese.
| Indoor effective distance | 10‑50 m |
|---|---|
| Maximum number of controllers | 15 |
| Receiver power supply | DC 12 V ±5 % (60 mA) |
| Operating temperature | 0 °C ~ 50 °C |
| Operating humidity | 0 % ~ 80 % |
| Weight (receiver / controller) | ≈80 g / ≈15 g |
| Receiver dimensions | 90 mm × 70 mm × 28 mm |
| Controller dimensions | 60 mm × 38 mm × 13 mm |
The remote works at an indoor distance of 10 to 50 meters.
A single receiver can support up to 15 remote controllers.
The receiver is powered by DC 12 V ±5 % (about 60 mA).
The device operates from 0 °C to 50 °C and 0 % to 80 % relative humidity.
