Featured PNL-RC manuals

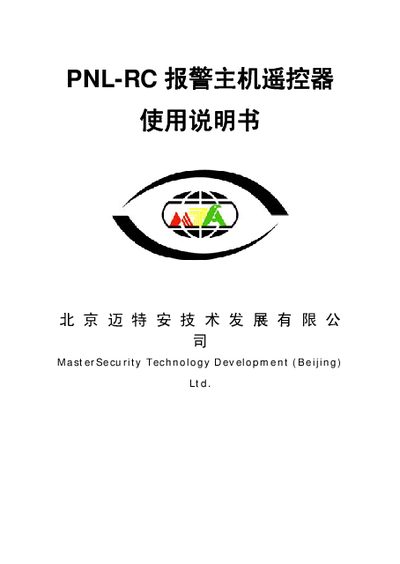

MasterSecurity PNL-RC Alarm Remote User Manual
The PNL‑RC alarm remote, designed for Honeywell 23 series alarm panels, consists of a compact receiver and a four‑button controller for learning, arm, disarm and emergency alarm functions. It supports up to 15 remote controllers and a wireless range of 100 m outdoors or 50 m indoors.
The manual details how to install the receiver inside or outside the alarm panel, connect it to the panel’s data and key lines, power options (DC 12 V or shared with the panel), and the procedures for pairing, learning, and using the remote controller, including indicator meanings and safety notes. This manual is written in Chinese.
Covers: Features and Performance · Installation and Wiring · Pairing and Learning Procedure · Receiver Status Indicators · Remote Controller Operation · Usage Notes
Latest PNL-RC manuals
PNL-RC Alarm master remote Manual
PNL-RC alarm host remote controller user manual introduces PNL-RC alarm host remote controller features, performance, installation, wiring, remote controller operation methods, precautions, standard accessories, warranty and other content.
MasterSecurity PNL-RC Alarm Remote User Manual
User Manual 4 pages · 195 KB · ZHThe MasterSecurity PNL-RC alarm remote user manual provides installation, wiring, operation and troubleshooting instructions.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in PNL-RC manuals
How do I pair (code) the remote controller with the receiver?
Open the receiver housing, press its white button, then press any button on the controller; the receiver’s red LED will flash for 2 seconds to indicate successful pairing.
How do I put the remote into learning mode?
Press the D and C buttons simultaneously; both the arm and disarm LEDs will flash, indicating the receiver has entered learning mode.
