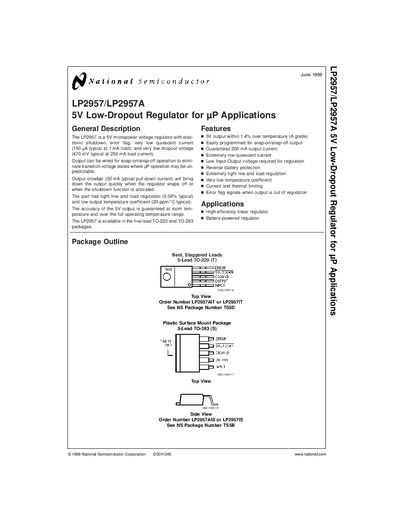

The LP2957/LP2957A provides a 5 V output with very low quiescent current (150 µA typical at 1 mA load) and a low dropout voltage of about 470 mV at 250 mA. It features electronic shutdown, an error flag, reverse‑battery protection, and tight line and load regulation (0.04 % typical) with a low temperature coefficient (20 ppm/°C).
The device is offered in five‑lead TO‑220 and TO‑263 (plastic surface‑mount) packages and operates from an input voltage of 6 V to 30 V. Application hints cover snap‑on/snap‑off output, external capacitor requirements, shutdown input handling, and heatsink calculations. Electrical characteristics, typical performance curves, and physical dimensions are provided.
| Output voltage | 5.0 V (typical) |
|---|---|
| Maximum output current | 250 mA |
| Line and load regulation | 0.04 % typical |
| Temperature coefficient | 20 ppm/°C typical |
| Input voltage range | 6 V to 30 V |
| Available packages | Five‑lead TO‑220 and TO‑263 |
| Shutdown input low threshold | < 1.2 V (logic LOW) |
It is available in five‑lead TO‑220 and TO‑263 (plastic surface‑mount) packages.
A logic “LOW” below 1.2 V applied to the shutdown input disables the regulator; a pull‑up resistor may be required.
