This document describes a 19.200 MHz quartz crystal unit with a size of 3.2 x 2.5 mm, suitable for surface mount. It is RoHS compliant and lead-free. The crystal unit has a frequency tolerance of ±10 PPM, temperature range of -40 to +85 ºC, and aging rate of ±3 PPM per year. It has a load capacitance of 12 pF and an equivalent series resistance of 100 ohms. The document also provides solder reflow characteristics and mechanical specifications.

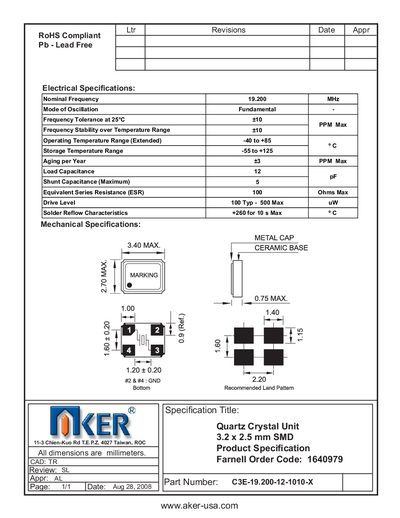

This datasheet lists the key electrical parameters of the AKER C3E-19.200-12-1010-X quartz crystal, including frequency, tolerance, stability, temperature ranges, load capacitance, ESR and drive level. It also includes mechanical dimensions and recommended land pattern for PCB layout.
The document notes RoHS compliance, lead‑free construction, and provides ordering information such as the Farnell order code and part number. All dimensions are given in millimetres.
| Nominal Frequency | 19.200 MHz |
|---|---|
| Frequency Tolerance at 25°C | +10 |
| Frequency Stability over Temperature Range | +10 PPM Max |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 |
| Aging per Year | +3 PPM Max |
| Load Capacitance | 12 |
| Shunt Capacitance (Maximum) | 5 pF |
| Equivalent Series Resistance (ESR) | 100 Ohms Max |
| Drive Level | 100 Typ - 500 Max uW |
| Solder Reflow Characteristics | +260 for 10 s Max °C |
| Package Size | 3.2 x 2.5 mm SMD |
The nominal frequency is 19.200 MHz.
It operates from –40 °C to +85 °C (extended range).
The load capacitance is 12 pF.
The part number is C3E-19.200-12-1010-X.
