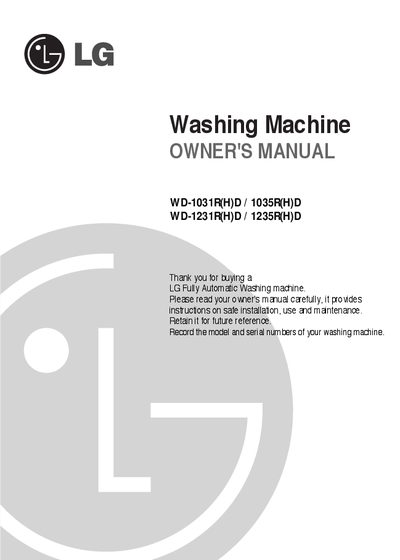

This document is the user manual for the LG fully automatic washing machine, which introduces the features, model, installation, use, maintenance and other information of the washing machine.
This manual explains how to safely install, use, and maintain LG fully‑automatic washing machines. It includes important safety warnings, grounding instructions, and guidance on preparing the appliance before the first wash.
The document also details the machine’s features such as Direct Drive, Intelligent Wash System, and Child‑Lock, and provides step‑by‑step instructions for connecting water and power, loading detergent, selecting cycles, and troubleshooting common problems.
| Power supply | 220‑240 V~, 50 Hz |
|---|---|
| Dimensions (W × D × H) | 600 mm × 600 mm × 850 mm |
| Weight | 75 kg |
| Wash capacity | 6.5 kg (cotton) |
| Dry capacity | 3.0 kg (cotton) |
| Maximum power consumption | 2150 W |
| Spin speed options | No Spin/400/600/800/1000 rpm (WD‑1031R/1035R) / No Spin/400/800/1000/1200 rpm (WD‑1231R/1235R) |
| Water consumption | 75 L per cycle (≈11.5 L/kg) |
| Permissible water pressure | 0.3‑10 kgf/cm² (30‑1000 kPa) |
Unscrew the three transit bolts with the supplied spanner and pull out the rubber bungs; keep the bolts for future use.
Check that the power cord is plugged in, the outlet is not overloaded, the fuse or circuit breaker is intact, the water supply tap is open, and the door is firmly closed and locked.
Verify that all transit bolts have been removed, the leveling feet are firmly on the floor, and the drum is not obstructed by foreign objects.
Ensure the rubber seals are correctly seated, the hose is not kinked or crushed, and the connection to the tap is tightened securely.
