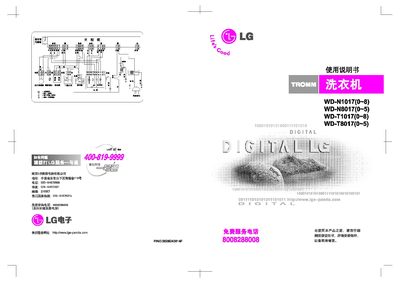

This manual covers safety precautions, proper installation, wiring, and operation of LG front‑loading washing machines. It explains how to connect water supply, use the control panel, and maintain the appliance safely.
The document also lists technical specifications, part names, and warranty information, helping owners understand performance limits and service requirements for the four model variants. This manual is written in Chinese.
| Model | WD‑N1017, WD‑N8017, WD‑T1017, WD‑T8017 |
|---|---|
| Power Supply | 220 V~, 50 Hz |
| Dimensions (W×D×H) | 600 mm × 440 mm × 850 mm (WD‑N series) / 600 mm × 550 mm × 850 mm (WD‑T series) |
| Net Weight | 60 kg (WD‑N) / 65 kg (WD‑T) |
| Maximum Power | 2100 W (WD‑N) / 2200 W (WD‑T) |
| Wash Capacity | 5.2 kg (WD‑N) / 7 kg (WD‑T) |
| Water Consumption per Cycle | 62 L (WD‑N) / 84 L (WD‑T) |
| Standard Water Pressure | 30 kPa – 1000 kPa |
| Wash Noise | 59 dB(A) |
| Spin Noise | 70 dB(A) |
The water pressure should be between 30 kPa and 1000 kPa.
Two people are required when moving the machine.
The whole machine is covered for one year, while the motor and PCB are covered for three years.
Use a 220 V, 10 A three‑core socket and avoid power strips.
