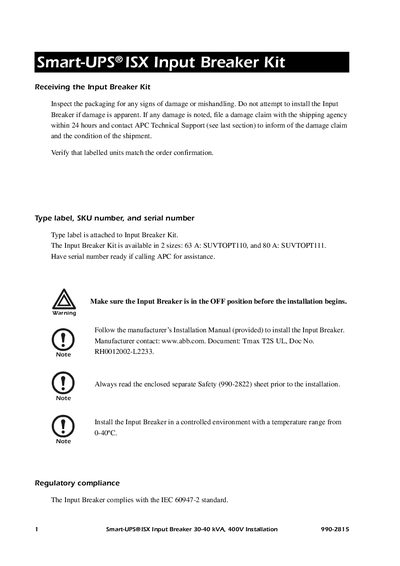

This document provides details on the installation of the Smart-UPS® ISX Input Breaker Kit, including inspection, label information, specified temperature range, and manufacturer contact details.
The manual explains how to receive and inspect the Input Breaker Kit, verify labeling, and prepare for installation. It includes safety warnings, damage claim procedures, and required documentation before beginning work.
Technical details such as electrical ratings, physical dimensions, recommended conductor sizes, and torque specifications are listed, along with contact information for APC technical support.
| Rated voltage | 480 VAC |
|---|---|
| Rated current (SUVTOPT110) | 63 A |
| Rated current (SUVTOPT111) | 80 A |
| Interrupting rating | 45 kA at 400 V |
| Height | 130 mm |
| Width | 90 mm |
| Depth | 70 mm |
| Weight | 2.9 kg |
| Recommended terminal torque | 7 Nm |
Install the Input Breaker in a controlled environment with a temperature range from 0‑40 °C.
Only copper conductors should be used.
The Input Breaker can interrupt up to 45 kA at 400 V.
Apply a tightening torque of 7 Nm to the terminals.
