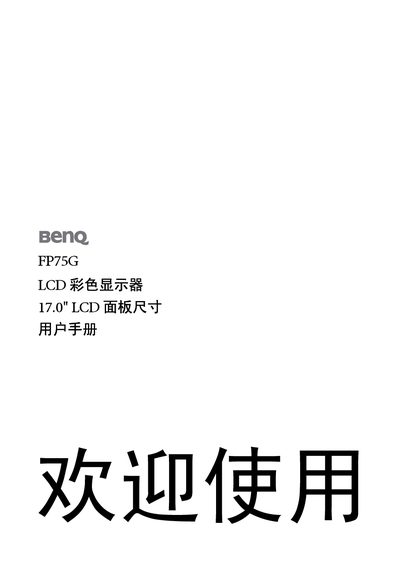

This manual provides detailed instructions on the features and operations of the FP75G monitor, including installation, usage, maintenance, and troubleshooting.
This manual provides safety instructions, proper handling, and maintenance guidelines for the BenQ FP75G 17.0" LCD color display. It covers power safety, cleaning, ventilation, and cautions against improper repairs.
The guide walks users through unpacking, hardware installation, connecting the D‑Sub video cable and power cord, adjusting screen resolution and refresh rate, and using the OSD menu. Technical specifications such as contrast ratio, brightness, response time, and power consumption are listed at the end of the document. This manual is written in Chinese.
| Display Type | 17.0" active TFT |
|---|---|
| Resolution | 1280 x 1024 |
| Contrast Ratio (typical) | 800:1 |
| Brightness (typical) | 300 cd/m² |
| Response Time (typical) | 5 ms |
| Viewing Angle (typical) | 160°/160° (CR>10) |
| Line Frequency | 31–83 kHz |
| Image Frequency | 56–76 Hz |
| Maximum Power Consumption | 40 W |
| Energy Saving Mode Power | < 1 W |
| Input Signal | RGB analog 0.7 Vpp / 75 Ω |
| Dimensions (WxHxD) | 365 x 372 x 135.1 mm |
| Operating Voltage | 100‑240 V, 50‑60 Hz |
Insert the power cable into the "POWER IN" socket on the back of the monitor, then plug the other end into a power outlet.
The monitor’s maximum power consumption is 40 W.
The native resolution is 1280 × 1024 pixels.
The typical contrast ratio is 800:1.
