National LMK01000 Family Clock Buffer, Divider, and Distributor User Manual

The LMK01000 family is a high-performance clock buffer, divider, and distributor from National Semiconductor Corporation that offers 1.6GHz of performance. It features best-in-class noise performance and is pin-to-pin and footprint compatible with the LMK03000/LMK02000 family of precision clock conditioners. The LMK01000 family has two programmable clock inputs (CLKin0 and CLKin1) that allow the user to dynamically switch between different clock domains. Each device has eight clock outputs with independently programmable dividers and delay adjustments. The outputs of the device can be easily synchronized by an external pin (SYNC*).

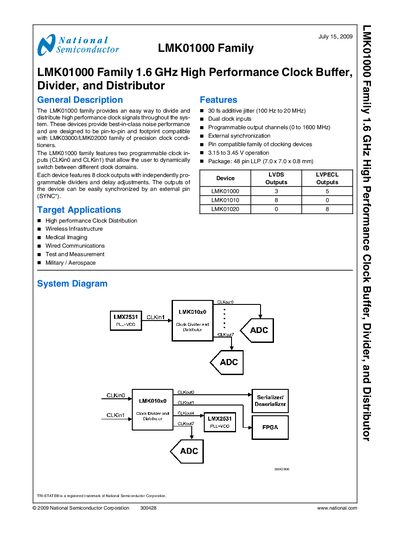

National LMK01000 Family Clock Buffer, Divider, and Distributor User Manual - cover page
Brand
National Semiconductor
Category
Other Electronics
Document type
User Manual
Language
English
Pages
22
File format
PDF
File size
522 KB
Published
12 April, 2012
Updated
30 September, 2023
MD5 checksum
8B57CB183DF45E10B83454A785D7132B

About this manual

The LMK01000 family offers high‑performance clock buffering, division, and distribution for applications such as wireless infrastructure, medical imaging, and test & measurement. The devices are pin‑to‑pin compatible with the LMK03000/LMK02000 families and support dual clock inputs with programmable output channels up to 1.6 GHz.

The manual includes functional block diagrams, pin descriptions, absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics. It also covers LVDS and LVPECL output options, MICROWIRE programming interfaces, and typical performance graphs for jitter, noise floor, and delay.

What's inside

  • General Description
  • Features
  • Pin Descriptions
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Electrical Characteristics
  • Clock Distribution – Delays
  • Clock Distribution – Divides
  • LVDS Clock Outputs
  • LVPECL Clock Outputs

Specifications

Clock Input Frequency Range0 – 1600 MHz
Additive RMS Jitter30 fs (100 Hz to 20 MHz)
Power Supply Voltage (typical)3.15 V – 3.45 V
Package48‑pin LLP (7.0 × 7.0 × 0.8 mm)
Operating Temperature Range-40 °C – 85 °C

Frequently asked questions

What is the maximum clock frequency supported by the LMK01000 family?

The devices support clock input frequencies up to 1.6 GHz.

What is the recommended power supply voltage for the LMK01000 family?

The recommended supply voltage is 3.15 V typical, with a range of 3.15 V to 3.45 V.

Are the LMK01000 devices compatible with the LMK03000/LMK02000 families?

Yes, they are pin‑to‑pin and footprint compatible with the LMK03000/LMK02000 families.
