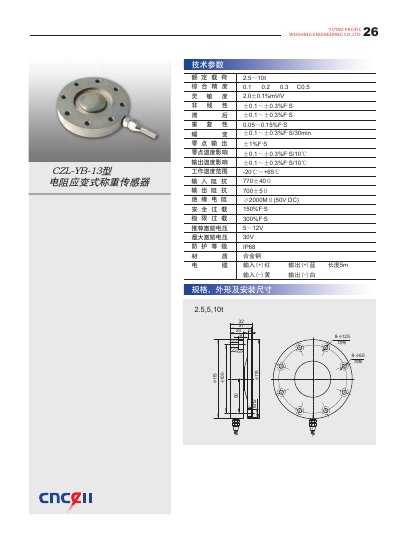

This document describes the specifications, dimensions, and installation dimensions of CNCELLS CZL-YB-13 resistance strain gauge weighing sensors. The sensor features rated load, comprehensive accuracy, sensitivity, nonlinearity, hysteresis, repeatability, creep, zero output, zero temperature influence, output temperature influence, working temperature range, input impedance, output impedance, insulation resistance, safety overload limit, recommended excitation voltage, maximum excitation voltage, protection level, material, and cable.
The CZL-YB-13 is an electronic strain (resistive) weight sensor designed for precise load measurement in weighing applications. It offers high accuracy, low hysteresis, and stable output over a wide temperature range.
The sheet lists the sensor's rated load, sensitivity, excitation voltage range, insulation resistance, IP68 protection rating, and mechanical dimensions, allowing engineers to integrate the device into weighing systems with confidence. This manual is written in Chinese.
| Rated load | 2.0±0.1% mV/V |
|---|---|
| Insulation resistance | ≥2000 MΩ (50 V DC) |
The insulation resistance is at least 2000 MΩ at 50 V DC.
