This document provides information about the specifications, dimensions, installation dimensions, rated load, accuracy, sensitivity, nonlinearity, hysteresis, repeatability, creep, zero output, zero temperature influence, output temperature influence, operating temperature range, input impedance, output impedance, insulation resistance, safety overload limit, recommended excitation voltage, maximum excitation voltage, protection level, material, and cable of CNCELLS CZL-YB-7U strain gauge load cell.

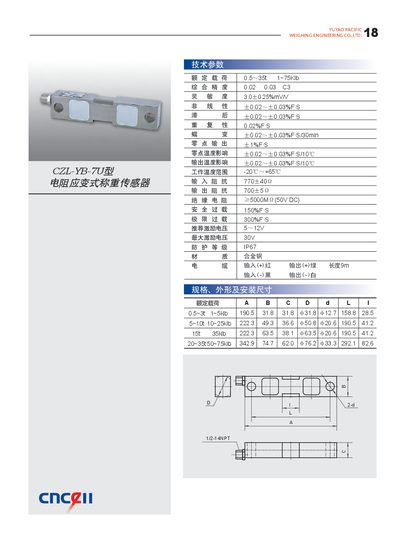

The document provides the technical parameters of the YUYAO PACIFIC CZL‑YB‑7U strain weight sensor, including rated load, accuracy, non‑linearity, hysteresis, repeatability and temperature effects. Electrical characteristics such as excitation voltage and maximum voltage are also listed.
Mechanical specifications such as operating temperature range, IP67 protection rating and mounting dimensions are included, making it suitable for harsh industrial environments. This manual is written in Chinese.
| Rated load | 0.5–35 t (1–75 klb) |
|---|---|
| Accuracy | 0.02–0.03 %FS |
| Non‑linearity | 0.02–0.039 %FS |
| Hysteresis | 0.02–0.03 %FS |
| Repeatability | 0.02 %FS |
| Temperature coefficient (10 °C) | 0.02–0.03 %FS |
| Operating temperature | -20 °C to +65 °C |
| Environmental protection | IP67 |
| Excitation voltage | 5–12 V |
| Maximum excitation voltage | 30 V |
The sensor is rated for loads from 0.5 t up to 35 t (1 klb to 75 klb).
It can operate between –20 °C and +65 °C.
The sensor requires an excitation voltage of 5 V to 12 V, with a maximum of 30 V.
Yes, it has an IP67 protection rating.
