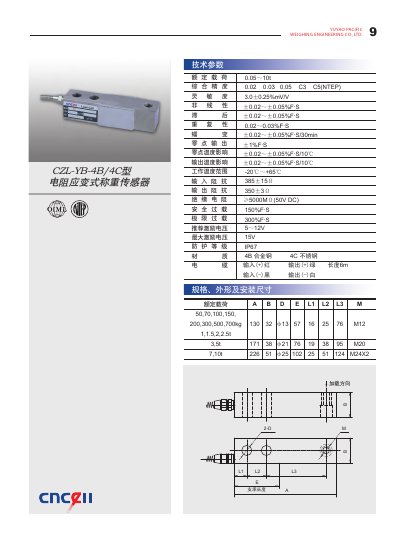

This file is about the technical parameters of CZL-YB-4B/4C type strain gauge load cell
The CZL-YB-4B/4C is an electronic strain weight sensor designed for precise weighing applications. It is offered in two material versions (alloy steel for 4B and stainless steel for 4C) and supports a range of rated loads from 50 kg up to 700 kg.
The datasheet lists key electrical and mechanical parameters such as sensitivity, non‑linearity, hysteresis, repeatability, temperature range, input/output impedance, insulation resistance, excitation voltage, and IP67 protection rating, along with mechanical dimensions and cable information. This manual is written in Chinese.
| Rated load | 50–700 kg (various capacities) |
|---|---|
| Sensitivity | 3.0±0.25 % mV/V |
| Nonlinearity | ±0.02–±0.05 % FS |
| Hysteresis (per 10 °C) | ±0.02–±0.05 % FS |
| Repeatability (30 min) | ±0.02–±0.05 % FS |
| Insulation resistance | ≥5 000 MΩ (50 V DC) |
