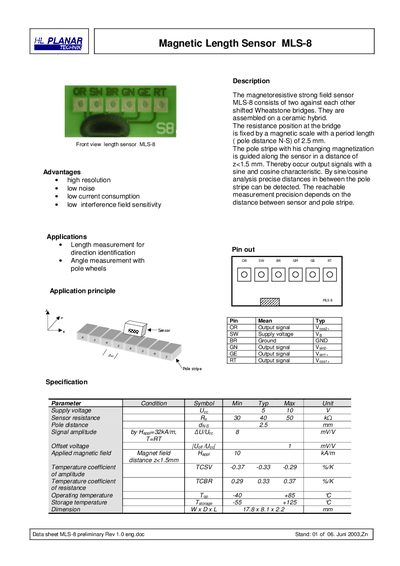

This document describes the features and characteristics of the Magnetic Length Sensor MLS-8. The sensor consists of two shifted Wheatstone bridges assembled on a ceramic hybrid. The measurement precision of the sensor depends on the distance between the sensor and the pole stripe.
The MLS-8 magnetic length sensor uses two shifted Wheatstone bridges on a ceramic hybrid to generate sine and cosine output signals. A magnetic scale with a 2.5 mm pole distance and a pole stripe moving within 1.5 mm of the sensor enables precise distance detection through sine/cosine analysis.
The device operates from a 5‑10 V supply, provides a sensor resistance of 30‑50 kΩ, and works within –40 °C to +85 °C operating temperature. Its compact dimensions are 17.8 × 8.1 × 2.2 mm, making it suitable for high‑resolution length measurement applications.
| Supply voltage | 5‑10 V |
|---|---|
| Sensor resistance | 30‑50 kΩ |
| Pole distance | 2.5 mm |
| Signal amplitude | 8 mVW/V |
| Offset voltage | 1 mVW/V |
| Applied magnetic field | 10 kA/m |
| Temperature coefficient of amplitude | -0.37 to -0.29 %/°C |
| Temperature coefficient of resistance | 0.29 to 0.37 %/°C |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -55 °C to +125 °C |
| Dimensions (W×D×L) | 17.8 × 8.1 × 2.2 mm |
The MLS-8 offers high resolution.
It operates from 5 V to 10 V.
The sensor works between –40 °C and +85 °C.
