CMDF5-16DO is a Profibus-dp communication mode switch quantity output expansion module launched by Jetcom Technology Co.,Ltd., supports 16 point switch quantity relay output mode, with 16 output status LED indication, 9.6Kbps～6 Mbps adaptive baud rate selection, special cases can use 12Mbps, bus, fault status indication.

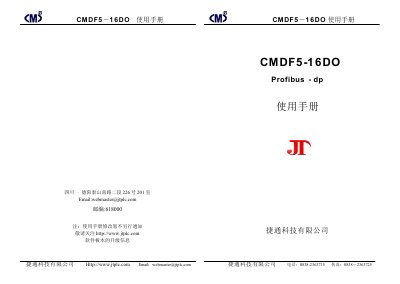

This manual introduces the CMDF5‑16DO PLC module, describing its main functions, hardware layout, and how to integrate it into a control system. It includes safety notices, power requirements, and basic configuration steps.
Detailed sections cover wiring diagrams, PROFIBUS‑DP communication settings, LED indicator meanings, and troubleshooting tips. The document also lists technical specifications such as supply voltage, power consumption, and communication speeds. This manual is written in Chinese.
| Input voltage range | DC22–30V |
|---|---|
| Power consumption | 2520 mW |
| Digital outputs | 16 |
| Supported fieldbus | PROFIBUS‑DP |
It provides 16 digital outputs, as indicated by the model name CMDF5‑16DO.
The module supports PROFIBUS‑DP communication.
