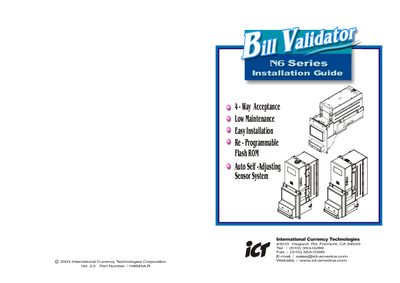

This document is an installation guide for the N6 series from International Currency Technologies Corporation. The series is a programmable flash ROM auto self-adjusting sensor system with 4-way acceptance, low maintenance, and easy installation.
This guide provides the specifications, mechanical dimensions, and functional description of the N6 Bill Validator. It explains the LED display and status indicators, the download/upgrade connector, and the wiring and pin‑out assignments for the 117 V AC version.
Detailed pin‑out tables for the 30‑pin peripheral connector, 9‑pin power connector, and 18‑pin interface connector are included, along with safety cautions for connecting and disconnecting the unit.
| Weight | Approx. 2kg |
|---|---|
| Power Acceptance | 117VAC 0.2A (60 Hz) |
| Maximum Power Consumption | 50 W |
| Operating Temperature | 0 °C – 55 °C |
| Humidity Range | 30 % – 85 % RH (no condensation) |
| Bill Capacity (300 bills) | 3M‑SBX03005 |
| Bill Capacity (500 bills) | 3M‑SBX04005 |
| Bill Capacity (800 bills) | 3M‑SBX08005 |
The two front LEDs flash ON and OFF in 500 ms intervals when the unit is ready to accept bills.
The N6 validator uses a dual‑in‑line 30‑pin peripheral connector for the main interface.
It accepts 117 VAC at 0.2 A (60 Hz).
The device operates from 0 °C to 55 °C.
