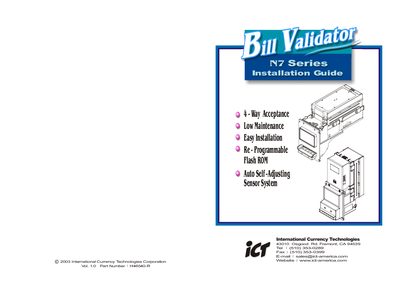

The N7 Series Installation Guide provides information on the specifications, dimensions, LED display, download and upgrade, pin-out assignments, and cables of the N7 bill validator. The product features 4-way acceptance, low maintenance, easy installation, re-programmable flash ROM, and an auto self-adjusting sensor system.
The N7 Bill Validator is a 4‑way acceptance device with a 96% acceptance rate and an approximate 3‑second validation time. It operates from 117 VAC at 0.2 A (60 Hz), consumes up to 50 W, and works in temperatures from 0 °C to 55 °C (storage –30 °C to 70 °C) with 30‑85 % RH humidity.
The guide details the LED display and status indicators, the 30‑pin peripheral connector, 9‑pin power connector, 18‑pin N.I.S.R interface, and the RJ‑45 port used for firmware upgrades. Safety cautions such as turning off power before connecting/disconnecting are also included.
| Acceptance Rate | 96% |
|---|---|
| Acceptance Speed | Approx. 3 seconds |
| Bill Box Capacity (small) | Approx. 100 bills (80‑120) |
| Power Source | 117 VAC 0.2 A (60 Hz) |
| Maximum Power Consumption | 50 W |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | -30 °C – 70 °C |
| Humidity Range | 30 % – 85 % RH (no condensation) |
The validator accepts bills with a 96 % acceptance rate.
Bill validation takes approximately 3 seconds, including bill stacking.
The LED status shows "bill jammed" when a bill is jammed.
It requires 117 VAC at 0.2 A (60 Hz) with a maximum consumption of 50 W.
