Kolin STB-SK07 Set-Top Box User Manual

This manual details the product's features, installation and usage methods.

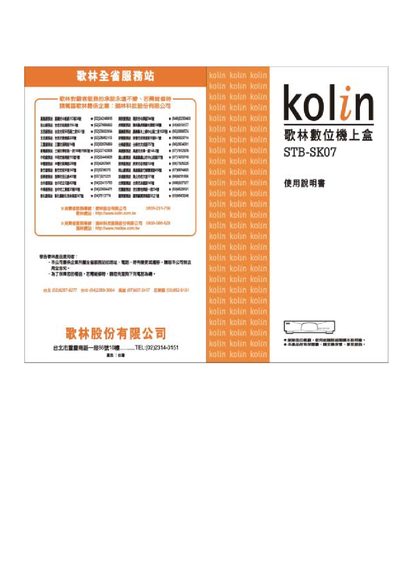

Kolin STB-SK07 Set-Top Box User Manual - cover page
Brand
Kolin
Category
Set Top Box(STB)
Document type
User Manual
Language
Chinese
Pages
18
File format
PDF
File size
1.4 MB
Published
11 April, 2012
Updated
30 September, 2023
MD5 checksum
17E0EF8611BE988E67DE714CF18481A9
PDF
Kolin STB-SK07 Set-Top Box User Manual PDF

About this manual

This manual covers the features and functions of the Kolin STB‑SK07 digital TV receiver, including front‑panel layout, remote‑control keys, and quick‑start installation steps. Detailed wiring diagrams and configuration menus are described for both VHF and UHF reception.

Technical specifications such as frequency ranges, signal strength, demodulation method, and audio/video output options are listed, along with common troubleshooting tips for power, picture, and sound issues. This manual is written in Chinese.

What's inside

  • Product Features
  • Front Panel Description
  • Remote Control Button Functions
  • Technical Specifications
  • Installation Wiring Diagram
  • Quick Installation Guide
  • On‑Screen Display (OSD) Operation
  • Electronic Program Guide (EPG)
  • Common Troubleshooting

Specifications

Input frequencyVHF 174‑230 MHz / UHF 470‑862 MHz
Signal input strength-78 dBm ~ -20 dBm
Demodulation methodOFDM FFT 2KV/8K
ConstellationQPSK, 16‑QAM, 64‑QAM
FEC1/2, 2/3, 3/4, 5/6, 7/8
CompatibilityETSI 300 744 DVB‑T
Power supply110 V ~ 60 Hz, 11 W max
Audio sample rates16‑48 kHz (up to 96 kHz PCM)
Download PDF (1.4 MB)
