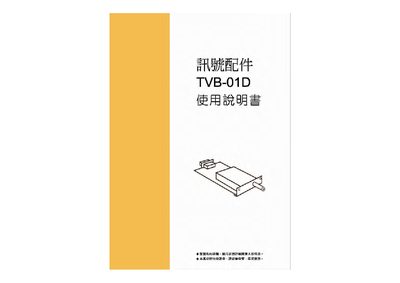

The manual begins with safety warnings and installation instructions for the Kolin TVB-01D TV tuner, advising proper handling, grounding, and connection of the antenna and power supply. It details the required steps for mounting, securing the device, and connecting the power and signal cables.
Subsequent sections cover basic connection, how to start using the device, channel searching, and troubleshooting tips for signal loss or error conditions. The guide explains how to adjust antenna direction, perform automatic channel scans, and resolve common faults. This manual is written in Chinese.
| Input voltage | DC 5V |
|---|---|
| Power consumption | <1W |
| Input impedance | VHFIUHF 75Ω |
| Control power | DC 3V (battery UNM-4, 2 pcs) |
| Weight | 121 g (including battery) |
Press the search key to start an automatic scan; the device will store all found channels and you can select them using the channel keys.
Check that the antenna is properly connected to the 75Ω input, adjust its direction, and verify that the power supply is correct.
