This document is a specification sheet of a monitor, model number KLT-3205/KLT-4205, size 32 inches and 42 inches, resolution 16:9 and 4:3, supports HDMI and VGA interfaces, input voltage 12V, power consumption 10W

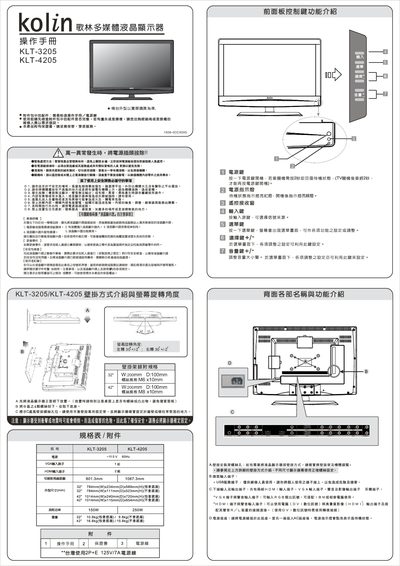

The KLT-3205 and KLT-4205 are wall‑mountable multimedia LCD displays offered by Kolin. They support VGA and HDMI inputs and are available in 32‑inch and 42‑inch sizes.
The manual covers safety precautions, power‑on procedures, connector functions, wall‑mount installation, menu navigation, troubleshooting tips, and warranty information. It also lists the technical specifications and required mounting hardware for each model. This manual is written in Chinese.
| Input voltage | ~110V 60Hz |
|---|---|
| HDMI inputs | 2 |
| Visible diagonal (32") | 801.3 mm |
| Dimensions (32") | 784 mm (W) × 234 mm (D) × 589 mm (H) |
| Dimensions (42") | 1014 mm (W) × 240 mm (D) × 720 mm (H) |
| Power consumption | 150 W (32") / 250 W (42") |
| Weight (32") | 10.8 kg (with stand) |
| Weight (42") | 16.8 kg (with stand) |
| Mounting screw (32") | M6 × 10 mm |
| Mounting screw (42") | M8 × 10 mm |
Press the power key once to turn on; press and hold for 2 seconds to switch to standby (off).
Check that the signal cable is correctly connected and that the source is active.
Wipe with a soft cloth; do not use alcohol, perfume, or other organic solvents.
