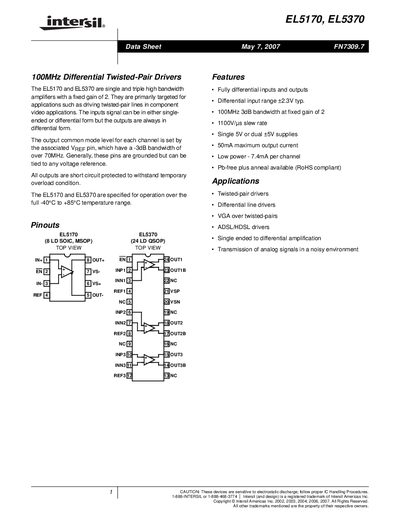

The EL5170 and EL5370 are single and triple high bandwidth amplifiers with a fixed gain of 2. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs signal can be in either single- ended or differential form but the outputs are always in differential form. The output common mode level for each channel is set by the associated VREF pin, which have a -3dB bandwidth of over 70MHz. Generally, these pins are grounded but can be tied to any voltage reference. All outputs are short circuit protected to withstand temporary overload condition. The EL5170 and EL5370 are specified for operation over the full -40°C to +85°C temperature range.
The EL5170 and EL5370 are high‑bandwidth differential twisted‑pair drivers designed for video and VGA over twisted‑pair applications. They accept single‑ended or differential inputs and provide differential outputs with a fixed gain of 2.
The devices operate from a single 5 V supply or dual ±5 V supplies, deliver up to 50 mA per channel, and are specified for -40 °C to +85 °C operation. Pin functions, package dimensions, and detailed electrical specifications are provided throughout the sheet.
| Bandwidth (3‑dB) | 100 MHz |
|---|---|
| Gain | Fixed gain of 2 |
| Supply Voltage | Single 5 V or dual ±5 V |
| Maximum Output Current | 50 mA per channel |
| Input Voltage Noise (10 kHz) | 28 nV/√Hz |
| Operating Temperature Range | -40 °C to +85 °C |
The devices have a fixed gain of 2.
They can be powered from a single 5 V supply or dual ±5 V supplies.
Each channel can source up to 50 mA of output current.
They are specified for operation from –40 °C to +85 °C.
