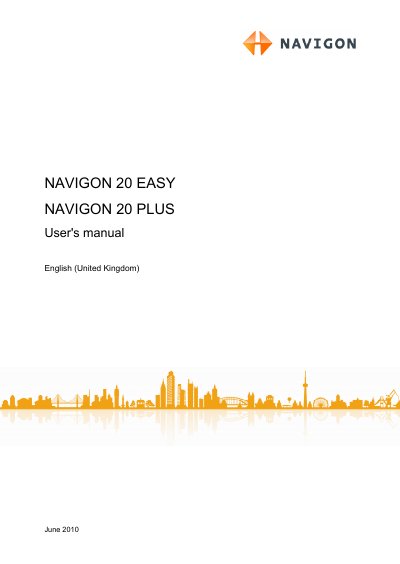

This manual provides information on the functions and use of the Navigon 20 EASY and Navigon 20 PLUS.
This manual provides detailed instructions for the Navigon 20 EASY and 20 PLUS navigation devices, including safety information, installation of the car cradle, power connection, and use of the touch‑screen interface. It also describes how to create routes, manage points of interest, and use traffic information services.
Technical specifications, troubleshooting tips, and an index are included to help users maintain and get the most out of their navigation system.
| Dimensions | 137 x 72.3 x 17.6 mm |
|---|---|
| Weight (20 EASY) | 104.5 g |
| Operating temperature | -10 °C to 70 °C |
| CPU | STA2064 (ARM11, 533 MHz) |
| Display | 3.5" LCD colour, 320 × 240 px, resistive touch‑panel |
| RAM | 64 MB |
| Flash memory | 2 GB |
| GPS receiver | STM STA5630, ST‑AGPS, -161 dBm |
| TMC (traffic info) | SiLabs 4709 |
| Proximity sensor | Yes (20 PLUS only) |
| Battery (20 EASY) | 450 mAh Li‑Ion |
| Battery (20 PLUS) | 800 mAh Li‑Ion |
| Power input | 10‑24 V DC via car charger cable |
| USB interface | USB 2.0 (1 port) |
| Memory card slot | microSD |
Follow the installation instructions in section 2.4.1 "Installing the NAVIGON 20 EASY in the vehicle".
The NAVIGON 20 PLUS uses an 800 mAh rechargeable Li‑Ion battery.
The device operates from –10 °C to 70 °C.
Yes, only the NAVIGON 20 PLUS model has a proximity sensor.
