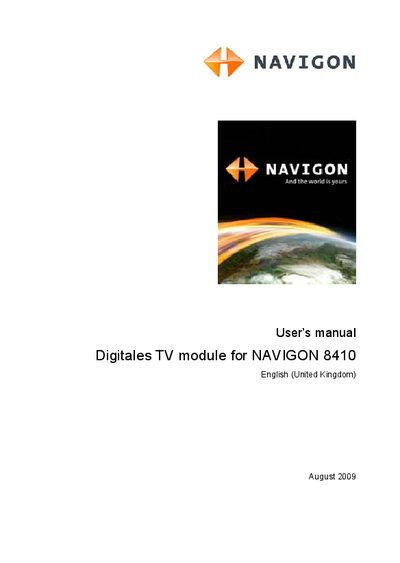

This document is the user manual for the NAVIGON 8410 digital TV module, which provides information on the features and operation of the product.
The Navigon 8410 Digital TV Module adds DVB‑T television capability to a NAVIGON navigation device. The manual explains safety precautions, such as not watching TV while driving and ensuring the antenna is properly extended, and provides the scope of delivery and regulatory information.
Installation steps include switching off the navigation unit, plugging the TV module into the left side, and activating the TV button. Operating instructions cover starting the module, channel selection, using the electronic program guide, and adjusting settings. Technical data and compliance details are listed in the appendix.
| Dimensions | 28 × 87 × 14 mm |
|---|---|
| Weight | ≈ 17.29 g |
| Operating temperature | -10 °C to 70 °C |
| Storage temperature | -30 °C to 80 °C |
| CPU | Siano SMS1150 |
| Antenna type | Telescopic antenna with MCX connector |
| Antenna connection | 50 Ω |
| Power supply | Via USB |
| VHF frequency range | 174 ~ 240 MHz |
| UHF bandwidth | 470 ~ 862 MHz |
| Supported modulations | COFDM (16QAM, 64QAM, QPSK) |
| TV resolution | 700 × 576 |
| TV compression | MPEG‑2 |
Turn off the navigation device, plug the TV module into the left side of the unit, then switch the device back on; the TV button in the START window becomes active.
The manual cautions not to watch any picture shows, videos or television programmes while driving, as it may be prohibited in the country you are travelling in.
It uses a telescopic antenna with an MCX connector; extend the antenna to its maximum length and keep it plugged in at all times.
