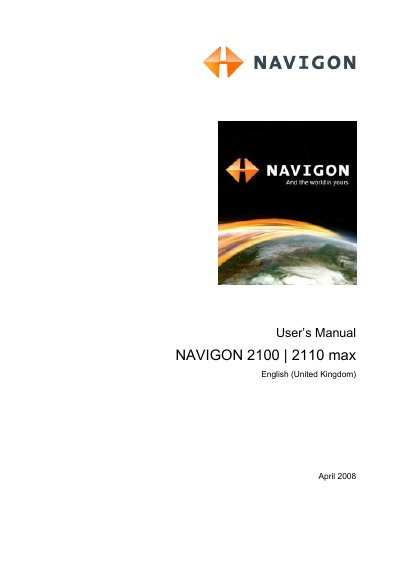

This manual is for the NAVIGON 2100 | 2110 max navigation device. It introduces the basic functions, usage methods and precautions of the device.
This manual covers the NAVIGON 2100/2110 max navigation system, a touchscreen‑based GPS unit for vehicle installation. It includes safety guidelines, installation steps, and detailed instructions for using the navigation software, picture viewer, and other functions.
Key sections describe how to install the device in a car cradle, configure the GPS antenna, manage passwords, navigate to destinations, and troubleshoot common issues. Technical data and an index are provided for quick reference.
| Dimensions | 122 x 77 x 18.9 mm |
|---|---|
| Weight | ≈ 178 g |
| Operating temperature | -10 °C to 60 °C |
| CPU | Samsung 400 MHz S3C2443X |
| Operating system | Microsoft Windows CE 5.0 |
| Display | 4.3" LCD, 480 × 272 px, resistive touch‑panel |
| RAM | 64 MB |
| Memory card | SD / SDHC |
| Battery | Li‑Po/Li‑Ion, 1200 mAh, up to 3 h runtime |
| Car charger input voltage | 10 V–24 V DC |
Select the password lock option in the menu and choose “Activating password protection” to set a new password.
Make sure the USB connector is fully inserted; if it is not, unplug it, then re‑insert it completely.
Only SD or SDHC memory cards should be used, and the card must stay inserted during operation.
No, the navigation device is not waterproof and should be protected from moisture.
