This document contains information for a new product, describing the features and characteristics of the product.

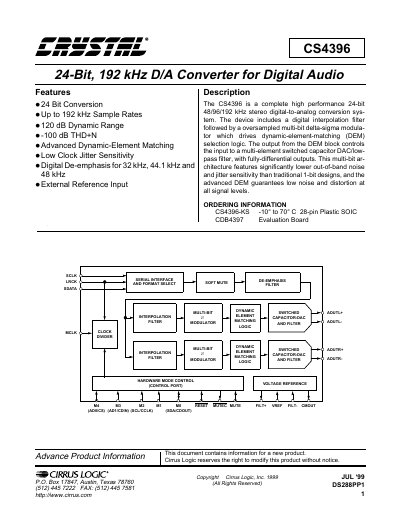

The CS4396 is a high‑performance 24‑bit, 48/96/192 kHz stereo digital‑to‑analog converter. It features a multi‑bit delta‑sigma architecture, low clock jitter sensitivity, and a dynamic‑element‑matching (DEM) block that delivers low noise and distortion across all signal levels.
This document provides detailed specifications, analog and digital characteristics, pin descriptions, register maps, control‑port timing for I²C and SPI, typical connection diagrams, and package dimensions for the CS4396.
| Maximum Sample Rate | 192 kHz |
|---|---|
| Package Type | 28‑pin Plastic SOIC |
The device is specified for operation from –10 °C to 70 °C.
