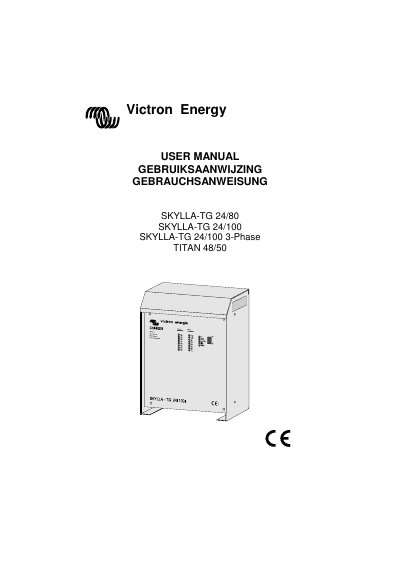

This document is a user manual for the Skylla-TG series chargers, describing the features and characteristics of the products.
This manual covers Victron Energy’s Skylla‑TG and Titan series battery chargers, designed for 24 V and 48 V lead‑acid batteries in mobile and stationary power applications. It describes the chargers’ protective features, optional functions, and how they can also serve as a DC power supply.
The document is organized into sections on introduction, product description, installation, operation, options, fault tracing, and detailed technical specifications (electrical, mechanical, and environmental). It also includes wiring diagrams, connection instructions for remote panels, and safety warnings.
| Efficiency (24/80) | 85 % at 230 Vac and 30 Vdc |
|---|---|
| Input voltage range | 185 – 265 Vac |
| Output voltage range (24/80) | 24‑33 Vdc |
| Maximum output current (24/80) | 80 A |
| Weight (24/80) | 9.8 kg |
| Dimensions (24/80) | 368 × 250 × 257 mm |
The recommended battery capacity for the Skylla‑TG 24/80 is 300 – 600 Ah.
The charger output is protected; the short‑circuit current is limited and the output voltage drops to 0 V until the fault is cleared.
Yes, the Titan charger can be used as a DC power supply when no battery is present.
